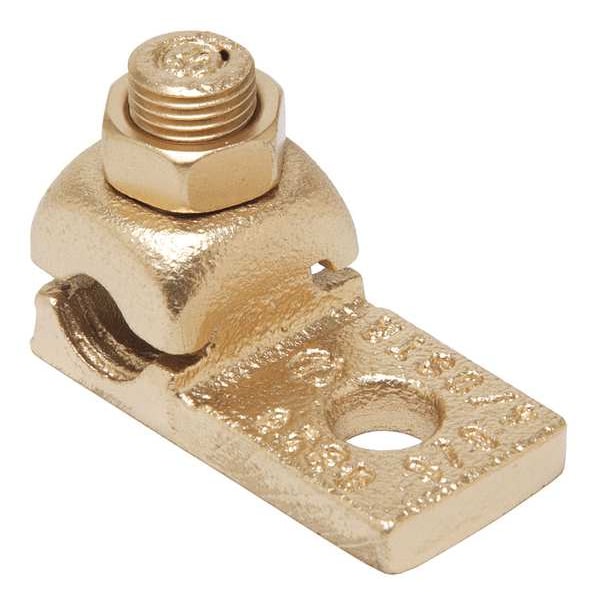

Mechanical Lug, 1 Conductor, 1 Hole, 3/8 in Stud, Copper
Mfr # QB28
Zoro # G4658157
product price:Â
$
115.99
/ea
Free Shipping & Returns
Key Features
For Conductor Material
Copper
Number of Conductors
1
Number of Terminations
1
Number of Holes
1
For Stud Size
3/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- QB28
- Zoro #
- G4658157
- UPC #
- 781810553886
- Country of Origin
- Mexico
Dimensions
- For Stud Size
- 3/8 in
- Hole Diameter
- 0.41 in
- Tongue Width
- 1 in
- Min. Conductor Size
- 3/0 AWG Stranded
- Length
- 2.06 in
- Max. Conductor Size
- 4/0 AWG Stranded
- Width
- 1.31 in
- Stud Size
- 3/8 in
- Length (Straight Wireway)
- 2.06 in
- Overall Depth
- 1 in
- Tongue Length
- 1.06 in
- Overall Length
- 2.06 in
- Tongue Thickness
- 0.25 in
- For Stranded Copper Wire Size - Minimum
- 3/0 AWG
- For Stranded Copper Wire Size - Maximum
- 4/0 AWG
- Overall Width
- 1.31 in
- Conductor Size
- 3/0-4/0 AWG
- Dimension - Width inch
- 1.00 in
- Dimension - Height inch
- 1.31 in
- Dimension - B Length inch
- 1.06 in
- Dimension - Pad Width inch
- 1.00 in
- Dimension - Stud Size fraction
- 44993
- Dimension - Hole Size inch
- 0.41 in
- Dimension - Hole Size fraction
- 13/32
- Dimension - Length Overall inch
- 2.06 in
- Dimension - D inch
- 1.06 in
- Dimension - Width mm
- 25 mm
- Dimension - Height fraction
- 42374
- Conductor - Copper Str Size Range
- 3/0 AWG-4/0 AWG
- Dimension - N inch
- 0.53 in
- Dimension - Bolt Size fraction
- 2023-03-08
- Dimension - L Length Overall mm
- 52 mm
- Dimension - B Length fraction
- 1-3/50 in
- Dimension - Pad Width fraction
- 1 in
- Conductor - Copper Str Size
- 3/0 AWG;4/0 AWG
- Dimension - Hole Size mm
- 10 mm
- Dimension - Stud Size inch
- 44993
- Wire Rope Length
- 2.06 in
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 3/0 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, For Stud Size 3/8 in, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.41 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 1.06 in, Tongue Width 1 in, Tongue Thickness 0.25 in, Connector Type Terminal
