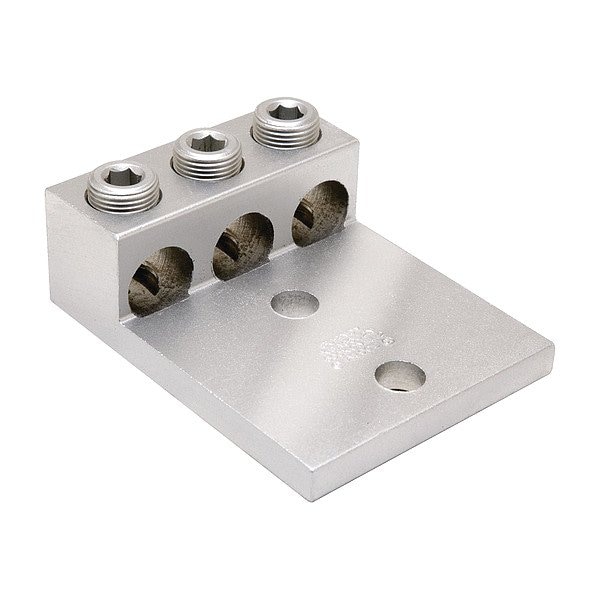

Mechanical Connector, Aluminum, Slotted
Mfr # K3A27U2N
Zoro # G021915854
product price:Â
$
94.29
/ea
Key Features
Connector Type
Set Screw
For Conductor Material
Aluminum, Copper
For Minimum Wire Size
6 AWG
For Maximum Wire Size
3/0 AWG
Number of Conductors
3
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- K3A27U2N
- Zoro #
- G021915854
- UPC #
- 781810370391
- Country of Origin
- United States
Dimensions
- For Minimum Wire Size
- 6 AWG
- For Maximum Wire Size
- 3/0 AWG
- For Stud Size
- 1/2 in
- Hole Diameter
- 0.56 in
- Tongue Width
- 2.83 in
- Overall Depth
- 1 1/8 in
- Wire Rope Length
- 4.25 in
- Overall Width
- 2.83 in
- For Stranded Copper Wire Size - Minimum
- 6 AWG
- For Stranded Copper Wire Size - Maximum
- 3/0 AWG
- Overall Length
- 4.25 in
- Length
- 4.25 in
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, For Stud Size 1/2 in, Head Style Slotted, Number of Holes 2, Hole Diameter 0.56 in, Hole Spacing 1.75 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Number of Conductors 3, Number of Terminations 3, Tongue Width 2.83 in, Connector Type Set Screw, Standards ARRA Compliant, CSA Certified, UL Listed
