  11. Mechanical Lug, 1/0 AWG Max, 1 Conductor, 1 Hole, 1/4 in Stud, Copper

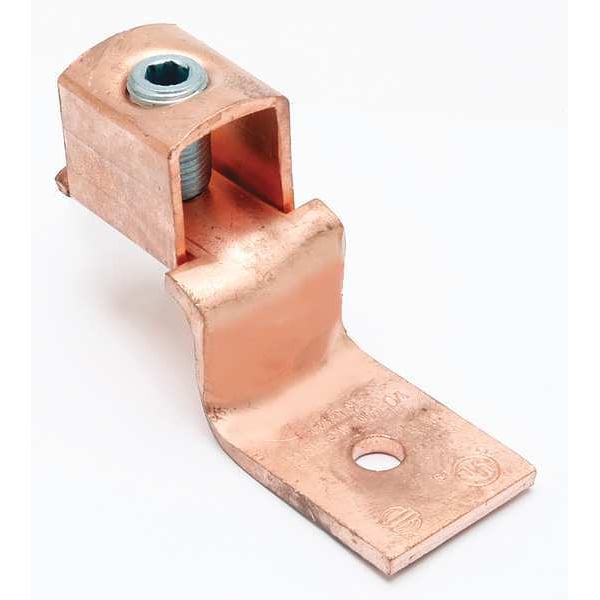

Burndy Mechanical Lug, 1/0 AWG Max, 1 Conductor, 1 Hole, 1/4 in Stud, Copper KLU125 - main

Mechanical Lug, 1/0 AWG Max, 1 Conductor, 1 Hole, 1/4 in Stud, Copper

  • Mfr # KLU125

  • Zoro # G4656933

product price: $9.69
/ea

Key Features

No. of Conductors
1
Min. Conductor Size
2 AWG Stranded
Max. Conductor Size
1/0 AWG Stranded
Number of Holes
1
Stud Size
1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KLU125
Zoro #
G4656933
UPC #
781810554197
Country of Origin
India

Dimensions

Min. Conductor Size
2 AWG Stranded
Max. Conductor Size
1/0 AWG Stranded
Stud Size
1/4 in
Length
1.99 in
Width
0.74 in
Length (Straight Wireway)
1.99 in
Overall Length
1.98 in
Overall Depth
5/8 in
Tongue Thickness
0.11 in
Hole Diameter
0.26 in
Strip Length
15/16 in
Overall Width
0.74 in
Tongue Width
0.62 in
For Stud Size
1/4 in
For Stranded Copper Wire Size - Minimum
2 AWG
For Stranded Copper Wire Size - Maximum
1/0 AWG
Conductor Size
2-1/0 AWG
Dimension - Stud Size inch
44930
Conductor - Copper Str Size Range
2 AWG-1/0
Dimension - Strip Length inch
15/16
Dimension - Hole Size inch
0.26 in
Dimension - Bolt Size fraction
2023-01-04
Dimension - B Length fraction
5/8 in
Dimension - N inch
0.42 in
Dimension - B Length inch
0.61 in
Conductor - Copper Str Size
2 AWG;1 AWG;1/0
Dimension - Hole Size mm
7 mm
Dimension - Length Overall inch
1.98 in
Dimension - L Length Overall mm
50 mm
Dimension - Pad Width inch
0.62
Dimension - Screw Size inch
44993
For Minimum Wire Size
2 AWG
For Maximum Wire Size
1/0 AWG

Details

Item
Mechanical Lug
No. of Conductors
1
Number of Holes
1
Material
Copper
Standards
cULus Listed, UL Listed
Head Style
Slotted
Body Material
Copper
Maximum Operating Temperature
194 Degrees F
Contact Finish
Unplated
Number of Conductors
1
Torque
50 in-lb
Compatible with Product Type
Copper Cable
For Conductor Material
Copper
Color
Bare
Special Features
Easy Installation, Long Lasting Reliable Contact
Maximum Voltage
600 V
Number of Terminations
1
Type
Bolted Lugs & Terminals
Certification - CSA Approved
No
Plated
N
UL Listed
No
Hardware Type
3/8 UNF Slotted SetScrew
Certification - cULus
Yes
Physical Attribute - Number of Screws
1
Application
For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bar
Conductor Type
CU C Str-Size
Certification - UL Listed Direct Burial
No
Industry Standard(s)
UL467
Physical Attribute - Number of Holes
1
Installation Torque Recommended in-lb
50
Trade Name
SCRULUGâ„¢
Plating Type
Unplated
Physical Attribute - Screw Type
Slot

Description

Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, For Stud Size 1/4 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.26 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 0.62 in, Tongue Thickness 0.11 in
