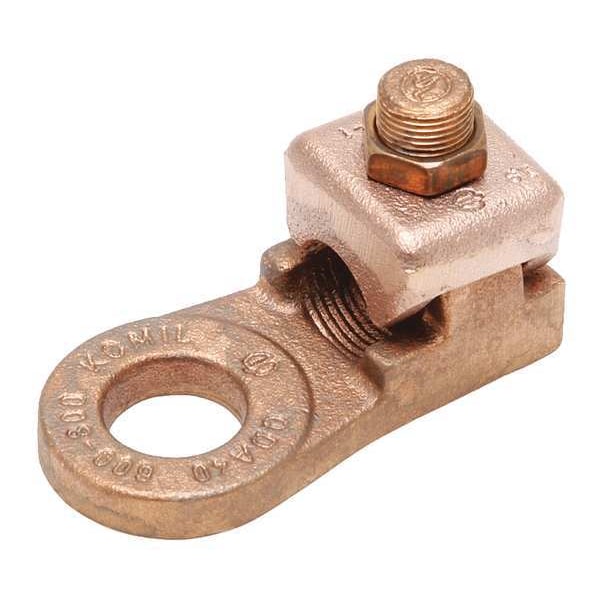

Mechanical Lug, 350 kcmil Max, 1 Conductor, 1 Hole, 5/8 in Stud, Copper
Mfr # QDA31
Zoro # G4653187
product price:Â $202.99
/ea
Free Shipping & Returns
Key Features
Connector Type
Terminal
For Conductor Material
Copper
For Minimum Wire Size
250 kcmil
For Maximum Wire Size
350 kcmil
Number of Conductors
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- QDA31
- Zoro #
- G4653187
- UPC #
- 781810553893
- Country of Origin
- United States
Dimensions
- For Minimum Wire Size
- 250 kcmil
- For Maximum Wire Size
- 350 kcmil
- For Stud Size
- 5/8 in
- Hole Diameter
- 0.69 in
- Tongue Width
- 1.5 in
- Max. Conductor Size
- 350 kcmil Stranded
- Length
- 3.38 in
- Stud Size
- 5/8 in
- Min. Conductor Size
- 250 kcmil Stranded
- Width
- 1.69 in
- Length (Straight Wireway)
- 3.38 in
- Tongue Thickness
- 0.31 in
- Overall Width
- 1.69 in
- Tongue Offset Height
- 1.6875 in
- For Stranded Copper Wire Size - Minimum
- 250 kcmil
- Overall Depth
- 1 1/2 in
- For Stranded Copper Wire Size - Maximum
- 350 kcmil
- Overall Length
- 3 in
- Conductor - Copper Str Navy Size
- 250 (61) Navy;300 (91) Navy;350 (91) Navy
- Dimension - Pad Width inch
- 1.50 in
- Dimension - L Length Overall mm
- 86 mm
- Dimension - Hole Size inch
- 0.69 in
- Dimension - Width inch
- 1.50 in
- Dimension - Height inch
- 1.69 in
- Dimension - Width mm
- 38 mm
- Conductor - Copper Str Size
- 250 kcmil;300 kcmil;350 kcmil
- Dimension - Height fraction
- 1-11/16 in
- Conductor - Copper Str Navy Size Range
- 250 (61) Navy-350 (91) Navy
- Dimension - Stud Size inch
- 45054
- Dimension - Length Overall inch
- 3.00 in
- Dimension - Hole Size fraction
- 45246
- Conductor - Copper Str Size Range
- 250 kcmil-350 kcmil
- Dimension - Hole Size mm
- 18 mm
- Wire Rope Length
- 3 in
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 250 kcmil, For Stranded Copper Wire Size - Maximum 350 kcmil, For Stud Size 5/8 in, Head Style Hex, Number of Holes 1, Hole Diameter 0.69 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 1.5 in, Tongue Thickness 0.31 in
