  11. Mechanical Lug, 2 AWG Max, 1 Conductor, 1 Hole, 1/4 in Stud, Copper

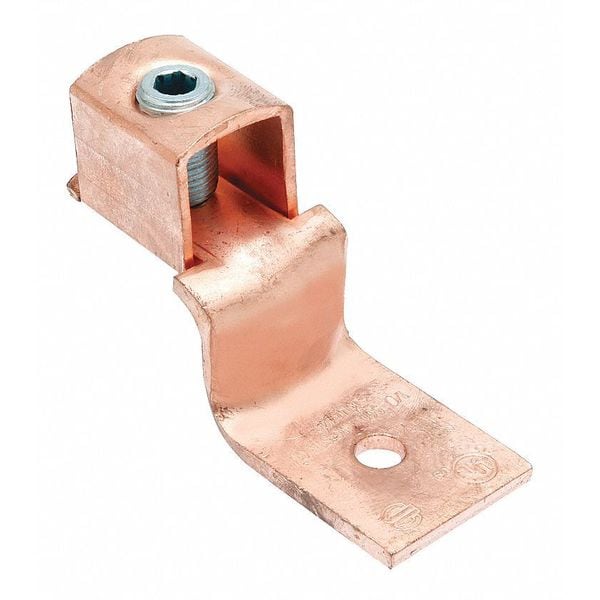

Burndy Mechanical Lug, 2 AWG Max, 1 Conductor, 1 Hole, 1/4 in Stud, Copper KLU70 - main

Mechanical Lug, 2 AWG Max, 1 Conductor, 1 Hole, 1/4 in Stud, Copper

  • Mfr # KLU70

  • Zoro # G4695704

product price: $5.49
/ea

Key Features

No. of Conductors
1
Min. Conductor Size
8 AWG Stranded/Solid
Max. Conductor Size
2 AWG Stranded/Solid
Number of Holes
1
Stud Size
1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KLU70
Zoro #
G4695704
UPC #
781810554180
Country of Origin
India

Dimensions

Min. Conductor Size
8 AWG Stranded/Solid
Max. Conductor Size
2 AWG Stranded/Solid
Stud Size
1/4 in
Length
1.56 in
Width
0.55 in
Length (Straight Wireway)
1.56 in
For Stud Size
1/4 in
For Stranded Copper Wire Size - Minimum
8 AWG
Overall Depth
1/2 in
Overall Width
1 in
Strip Length
3/4 in
Tongue Thickness
0.08 in
Overall Length
1.56 in
For Stranded Copper Wire Size - Maximum
2 AWG
Tongue Width
0.50 in
Hole Diameter
0.26 in
Conductor Size
8-2 AWG
Dimension - Hole Size inch
0.26 in
Dimension - Stud Size inch
44930
Conductor - Copper Solid Size
8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
Conductor - Copper Str Size Range
8 AWG-2 AWG
Dimension - Bolt Size fraction
2023-01-04
Dimension - Screw Size inch
45062
Conductor - Copper Str Size
8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
Dimension - Strip Length inch
44989
Dimension - B Length inch
0.50 in
Dimension - B Length fraction
1/2 in
Dimension - Length Overall inch
1.55 in
Dimension - Hole Size mm
7 mm
Dimension - L Length Overall mm
39 mm
Dimension - Pad Width inch
0.47 in
Dimension - N inch
0.25 in
Conductor - Copper Solid Size Range
8 AWG-2 AWG
For Maximum Wire Size
2 AWG
For Minimum Wire Size
8 AWG

Details

Item
Mechanical Lug
No. of Conductors
1
Number of Holes
1
Material
Copper
Standards
cULus Listed, UL Listed
Body Material
Copper
Head Style
Slotted
Maximum Voltage
600 V
Compatible with Product Type
Copper Cable
Special Features
Easy Installation, Long Lasting Reliable Contact
Color
Bare
Torque
40 in-lb
Contact Finish
Unplated
Number of Conductors
1
Number of Terminations
1
For Conductor Material
Copper
Maximum Operating Temperature
194 Degrees F
Type
Bolted Lugs & Terminals
Plating Type
Unplated
Industry Standard(s)
UL467
Trade Name
SCRULUGâ„¢
Certification - cULus
Yes
UL Listed
No
Installation Torque Recommended in-lb
40
Certification - UL Listed Direct Burial
No
Hardware Type
5/16 UNF Slotted SetScrew
Plated
N
Conductor Type
CU C Solid-SizeCU C Str-Size
Certification - CSA Approved
No
Physical Attribute - Screw Type
Slot
Physical Attribute - Number of Holes
1
Physical Attribute - Number of Screws
1
Application
For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bar

Description

Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 8 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, For Stud Size 1/4 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.26 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 0.5 in, Tongue Thickness 0.08 in, Connector Type Terminal
