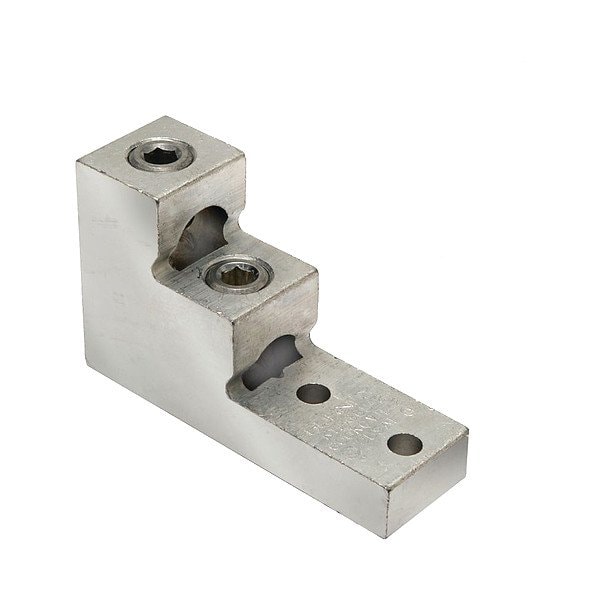

Mechanical Lug, 2 Conductor, 3/8 in Stud, Aluminum
Mfr # K11A39U2
Zoro # G616451668
product price:Â $150.99
/ea
Free Shipping & Returns
Key Features
Connector Type
Set Screw
For Conductor Material
Aluminum, Copper
Number of Conductors
2
Number of Holes
2
For Stud Size
3/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
K11A39U2
Zoro #
G616451668
UPC #
781810370292
Country of Origin
United States
Dimensions
For Stud Size
3/8 in
Hole Diameter
0.41 in
Overall Depth
3 in
Overall Width
1.52 in
For Stranded Copper Wire Size - Maximum
750 kcmil
For Stranded Copper Wire Size - Minimum
1/0 AWG
Overall Length
4.91 in
Details
Item
Mechanical Lug
Connector Type
Set Screw
For Conductor Material
Aluminum, Copper
Number of Conductors
2
Number of Holes
2
Body Material
Aluminum
Contact Finish
Tin Plated
Maximum Operating Temperature
194 Degrees F
Standards
CSA Certified, UL Listed
Torque
375 in-lb
Screw Finish
Tin Plated
Screw Material
Aluminum
Special Features
Provide Low Contact Resistance
Head Style
Hex
RoHS Compliant
No
Hole Spacing
1.38 in
Compatible with Product Type
Aluminum Conductor, Copper Conductor
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 750 kcmil, For Stud Size 3/8 in, Head Style Hex, Number of Holes 2, Hole Diameter 0.41 in, Hole Spacing 1.38 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Number of Conductors 2, Connector Type Set Screw, Standards CSA Certified, UL Listed, Compatible with Product Type Aluminum Conductor, Copper Conductor
