  5. Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Receptacle

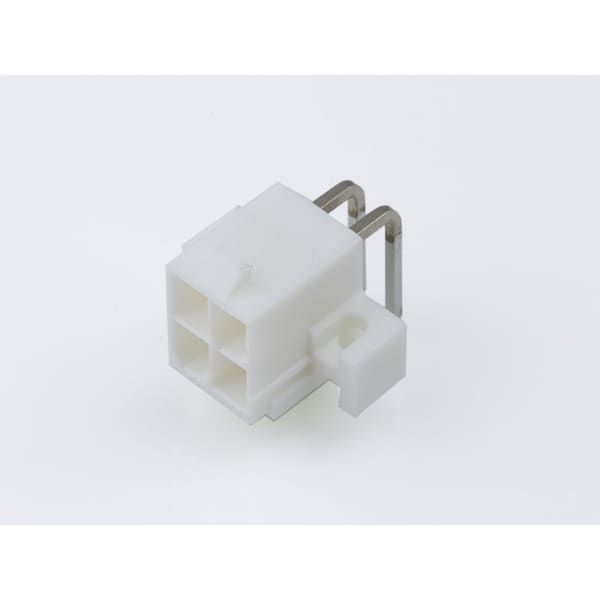

Molex Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Receptacle 39294049 - main

Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 39294049

  • Zoro # G105910508

product price:  $2.15
/ea
Sold in multiples of 45 for $96.75

Key Features

Color
Natural
Number of Rows
2
Series
5569
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
39294049
Zoro #
G105910508
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.78mm
PC Tail Length
3.60mm

Details

Color
Natural
Number of Rows
2
Series
5569
Max. Voltage
600V
Application
Power, Wire-to-Board
Max. Temp.
260°C
Material
Nylon
Hole Center to Center
4.2 mm
Terminal Type
Through Hole
Standards
CSA Certified; UL E29179
Flammability Rating
UL 94V-0
Number of Contacts
4
Contact Finish
Gold Plated
Terminal Finish
Tin Plated
Current Rating
13 A
Guide to Mating Part
No
CSA
LR19980
Durability (mating cycles max)
30
Product Name
Mini-Fit Jr.
Keying to Mating Part
None
Lock to Mating Part
Yes
Glow-Wire Capable
No
Stackable
No
Circuits (Loaded)
4
Breakaway
No
Current - Maximum per Contact
13.0A
Material - Metal
Brass
Material - Plating Termination
Tin
Temperature Range - Operating
-40° to +105°C
Orientation
Right Angle
PCB Retention
Yes
UL
E29179
First Mate / Last Break
No
Max-Duration
5
Material - Resin
Nylon
Shrouded
Fully
Plating min - Mating
0.762µm
Polarized to PCB
Yes
Polarized to Mating Part
Yes
PCB Locator
Yes
Flammability
94V-0
Component Type
PCB Header
Max-Temp
260
Pitch - Mating Interface
4.20mm
Max-Cycle
1
Material - Plating Mating
Gold
