  11. Mechanical Lug, 2 Conductor, 5/16 in Stud, Copper

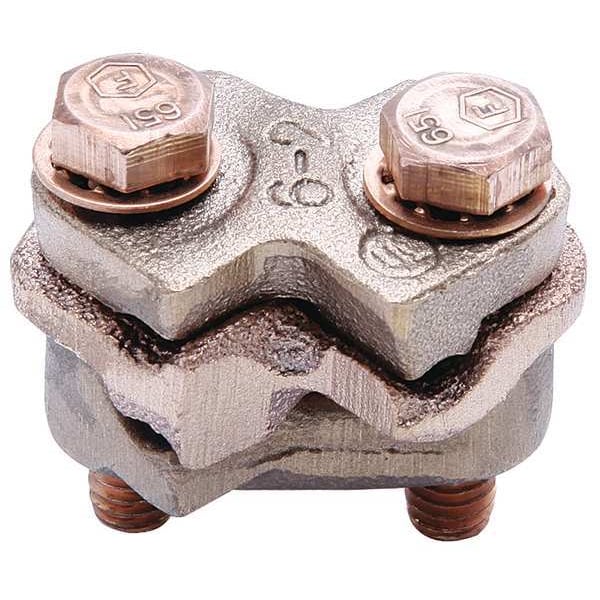

Burndy Mechanical Lug, 2 Conductor, 5/16 in Stud, Copper QPX2C2C - main

Mechanical Lug, 2 Conductor, 5/16 in Stud, Copper

  • Mfr # QPX2C2C

  • Zoro # G4661702

product price: $79.49
/ea
Free Shipping & Returns

Key Features

For Conductor Material
Copper
Number of Conductors
2
Number of Terminations
2
For Stud Size
5/16 in
Body Material
Copper
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QPX2C2C
Zoro #
G4661702
UPC #
781810554395
Country of Origin
Mexico

Dimensions

For Stud Size
5/16 in
Max. Conductor Size
2 AWG (Run) Stranded, 2 AWG (Tap) Stranded
Length
1.63 in
Width
1.38 in
Stud Size
5/16 in
Min. Conductor Size
6 AWG (Run) Stranded, 6 AWG (Tap)
Length (Straight Wireway)
1.63 in
Overall Length
1.31 in
For Stranded Copper Wire Size - Minimum
6 AWG
Overall Depth
1 3/8 in
Overall Width
1.5 in
For Stranded Copper Wire Size - Maximum
2 AWG
Conductor - Nominal Diameter
0.179, 0.182, 0.184, 0.199, 0.206, 0.219, 0.223, 0.225, 0.230, 0.232, 0.246, 0.258, 0.260, 0.276, 0.290, 0.310, 0.320, 0.326
Dimension - Width mm
35 mm
Dimension - Height inch
1.5
Dimension - B Length fraction
1/3 in
Dimension - Height fraction
37257
Dimension - B Length inch
0.31 in
Dimension - L Length Overall mm
33 mm
Dimension - Width fraction
1-3/8 in
Dimension - Width inch
1.38
Dimension - Length Overall inch
1.31 in

Details

Item
Mechanical Lug
For Conductor Material
Copper
Number of Conductors
2
Number of Terminations
2
Body Material
Copper
Contact Finish
Unplated
Maximum Voltage
600 V
Maximum Operating Temperature
194 Degrees F
Standards
UL Listed
No. of Conductors
2
Material
Copper
Head Style
Hex
Special Features
Edges Are Rounded For Easy Taping, For Tee, Cross, Parallel, Butt And Tap Connections, Range-Taking
Compatible with Product Type
Copper Cable
Torque
180 in-lb
Type
QPX
Application
For Tee, Cross, Parallel, Butt And Tap Connections, Copper, Copperweld And Copperweld-Copper
Item Type
3B
Industry Standard(s)
UL486C
Conductor Type
CU C Str-RunCU Weld C Str-RunCU Weld C Solid-RunCU C Str-TapCU Weld C Str-TapCU Weld C Solid-Tap
Conductor - CopperWeld Solid Run
5 AWG
Conductor - CopperWeld Str Run
8 A AWG;8 C AWG;8 D AWG;7 A AWG;7 D AWG;6 A AWG;6 C AWG;6 D AWG;5 A AWG;5 D AWG;5 P AWG;4 A AWG
Physical Attribute - Number of Screws
2
Certification - UL Listed Direct Burial
No
Material - Hardware
DURIUMâ„¢ Silicon Bronze
UL Listed
Yes
Conductor - Copper Str Run Range
6 AWG-2 AWG
Conductor - CopperWeld Solid Tap
5 AWG
Installation Torque Recommended in-lb
180 LBS/in
Conductor - CopperWeld Solid Run Range
5 AWG
Plating Type
Unplated
Conductor - CopperWeld Str Tap
8 A AWG;8 C AWG;8 D AWG;7 A AWG;7 D AWG;6 A AWG;6 C AWG;6 D AWG;5 A AWG;5 D AWG;5 P AWG;4 A AWG
Conductor - Copper Str Tap Range
6 AWG-2 AWG
Trade Name
VERSITAPâ„¢
Physical Attribute - Screw Type
Hexagonal Bolt
Temperature Rating
194
Conductor - CopperWeld Solid Tap Range
5 AWG
Certification - CSA Approved
No
Conductor - Copper Str Run
6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
Plated
N
Rating - Minimum Voltage
600
Conductor - CopperWeld Str Tap Range
8 A AWG-4 A AWG
Conductor - CopperWeld Str Run Range
8 A AWG-4 A AWG
Conductor - Copper Str Tap
6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
Connector Type
Universal Clamp

Description

Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, For Stud Size 5/16 in, Head Style Hex Head, Number of Holes Not Applicable, Hole Diameter Not Applicable, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 2, Number of Terminations 2, Tongue Width Not Applicable, Tongue Thickness Not Applicable
