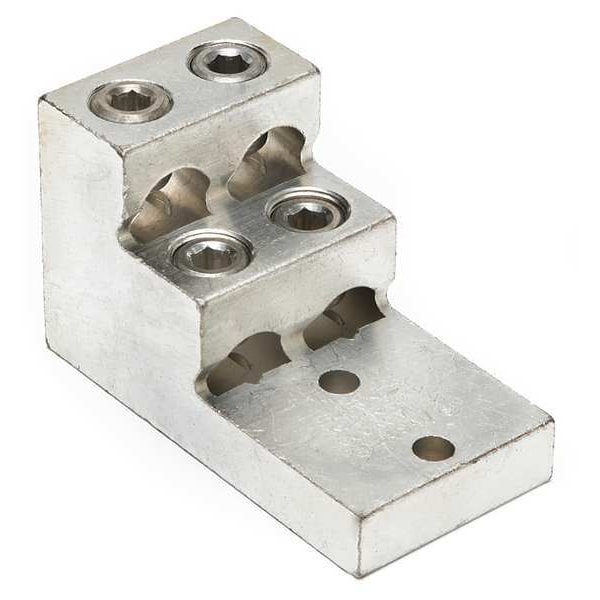

Mechanical Lug, 600 kcmil Max, 4 Conductor, 2 Hole, 3/8 in Stud, Aluminum
Mfr # K22A36U2
Zoro # G4702372
CAD Available
product price:Â $100.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
For Conductor Material
Aluminum, Copper
For Minimum Wire Size
2 AWG
For Maximum Wire Size
600 kcmil
Number of Conductors
4
Number of Terminations
4
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- K22A36U2
- Zoro #
- G4702372
- UPC #
- 781810559314
- Country of Origin
- United States
Dimensions
- For Minimum Wire Size
- 2 AWG
- For Maximum Wire Size
- 600 kcmil
- For Stud Size
- 3/8 in
- Hole Diameter
- 0.41 in
- Tongue Width
- 2.5 in
- Max. Conductor Size
- 600 kcmil Stranded
- Length
- 4.91 in
- Stud Size
- 3/8 in
- Width
- 3.03 in
- Min. Conductor Size
- 2 AWG Stranded
- Length (Straight Wireway)
- 4.91 in
- Overall Depth
- 2 1/2 in
- For Stranded Copper Wire Size - Minimum
- 2 AWG
- Overall Width
- 3.03 in
- For Stranded Copper Wire Size - Maximum
- 600 kcmil
- Tongue Thickness
- 0.75 in
- Tongue Length
- 2.31 in
- Overall Length
- 4.91 in
- Conductor - Copper Str Size
- 2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil
- Dimension - Height inch
- 3.03 in
- Dimension - L Length Overall mm
- 125 mm
- Dimension - D inch
- 2.31 in
- Dimension - Length Overall inch
- 4.91 in
- Conductor - Copper Str Size Range
- 2 Str. - 600 Kcmil
- Conductor - AL Str Size Range
- 2 Str. - 600 Kcmil
- Dimension - Width inch
- 2.49 in
- Dimension - N inch
- 0.38 in
- Dimension - Hole Size inch
- 0.41 in
- Dimension - Height fraction
- 3 in
- Conductor - AL Str Size
- 2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil
- Dimension - Hole Size mm
- 10 mm
- Dimension - Width mm
- 64 mm
- Dimension - Pad Width inch
- 2.49 in
- Dimension - Bolt Hole Size inch
- 0.38 in
- Dimension - Stud Size inch
- 3/8 in
- Wire Rope Length
- 4.91 in
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 600 kcmil, For Stud Size 3/8 in, Head Style Hex Socket, Number of Holes 2, Hole Diameter 0.41 in, Hole Spacing 1.38 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 4, Number of Terminations 4, Tongue Length 2.31 in, Tongue Width 2.5 in, Tongue Thickness 0.75 in
