  11. Mechanical Lug, 2/0 AWG Max, 1 Conductor, 1 Hole, 3/8 in Stud, Copper

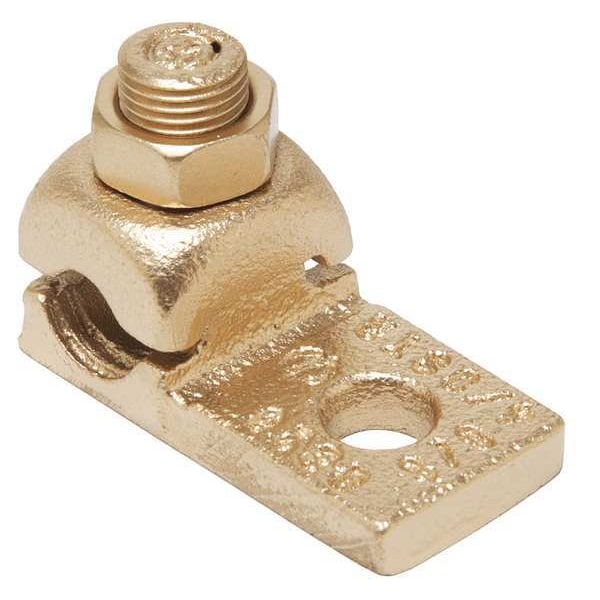

Burndy Mechanical Lug, 2/0 AWG Max, 1 Conductor, 1 Hole, 3/8 in Stud, Copper QA26B - main

Mechanical Lug, 2/0 AWG Max, 1 Conductor, 1 Hole, 3/8 in Stud, Copper

  • Mfr # QA26B

  • Zoro # G4691583

product price: $57.85
/ea

Key Features

No. of Conductors
1
Min. Conductor Size
1/0 AWG Stranded
Max. Conductor Size
2/0 AWG Stranded
Number of Holes
1
Stud Size
3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QA26B
Zoro #
G4691583
UPC #
781810553619
Country of Origin
Mexico

Dimensions

Min. Conductor Size
1/0 AWG Stranded
Max. Conductor Size
2/0 AWG Stranded
Stud Size
3/8 in
Length
2.0 in
Width
1.12 in
Length (Straight Wireway)
2.0 in
Overall Length
2 in
Overall Depth
13/16 in
Tongue Length
0.94 in
For Stranded Copper Wire Size - Maximum
2/0 AWG
Hole Diameter
0.41 in
For Stud Size
3/8 in
For Stranded Copper Wire Size - Minimum
1/0 AWG
Tongue Thickness
0.22 in
Tongue Width
0.81 in
Overall Width
1.12 in
Conductor Size
1/0-2/0 AWG
Dimension - Hole Size fraction
13/32
Dimension - Hole Size inch
0.41 in
Dimension - Hole Size mm
10 mm
Dimension - Length Overall inch
2.00 in
Dimension - D inch
0.94 in
Dimension - Height inch
1.12 in
Dimension - Height fraction
42372
Dimension - Pad Width inch
0.81 in
Conductor - Copper Str Size
1/0 ;2/0 AWG
Dimension - N inch
0.44 in
Dimension - Bolt Size fraction
2023-03-08
Conductor - Copper Str Navy Size Range
100 (61) Navy-125 (61) Navy
Dimension - L Length Overall mm
51 mm
Conductor - Copper Str Navy Size
100 (61) Navy;125 (61) Navy
Dimension - Stud Size inch
44993
Conductor - Copper Str Size Range
1/0 -2/0 AWG
For Minimum Wire Size
1/0 AWG
For Maximum Wire Size
2/0 AWG

Details

Item
Mechanical Lug
No. of Conductors
1
Number of Holes
1
Material
Copper
Standards
UL Listed
Head Style
Hex
Body Material
Copper
Maximum Voltage
600 V
Torque
180 in-lb
Number of Conductors
1
For Conductor Material
Copper
Contact Finish
Unplated
Special Features
Fast Onewrench Installation, Heavy Duty, Joining A Wide Range Of Cable
Compatible with Product Type
Cable
Number of Terminations
1
Maximum Operating Temperature
194 Degrees F
Type
Bolted Lugs & Terminals
Trade Name
QIKLUGâ„¢
Physical Attribute - Number of Holes
1
Rating - Minimum Voltage
600
Plating Type
Unplated
Physical Attribute - Screw Type
Hexagonal Bolt
Conductor Type
CU C Str-SizeCU C Str Navy-Size
UL Listed
Yes
Plated
N
Industry Standard(s)
UL468A-468B
Certification - CSA Approved
No
Temperature Rating
194
Installation Torque Recommended in-lb
180 LBS/in
Application
For Joining A Wide Range Of Cable To Equipment Pads Or Bar
Physical Attribute - Number of Screws
1

Description

Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, For Stud Size 3/8 in, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.41 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.94 in, Tongue Width 0.81 in, Tongue Thickness 0.22 in, Connector Type Terminal
