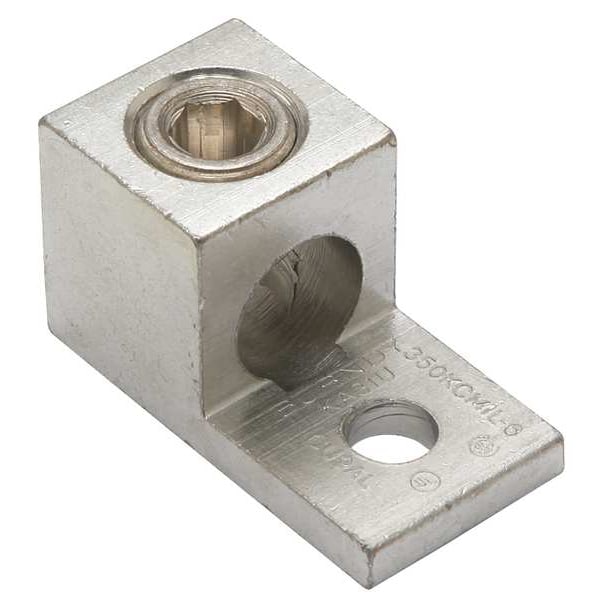

Mechanical Lug, 350 kcmil Max, 1 Conductor, 1 Hole, 3/8 in Stud, Aluminum
Mfr # KA31U
Zoro # G4654894
CAD Available
product price: $10.25
/eaKey Features
CAD Drawing
No. of Conductors
1
Min. Conductor Size
6 AWG Stranded
Max. Conductor Size
350 kcmil Stranded
Number of Holes
1
Stud Size
3/8 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KA31U
Zoro #
G4654894
UPC #
781810559123
Country of Origin
Mexico
Dimensions
Min. Conductor Size
6 AWG Stranded
Max. Conductor Size
350 kcmil Stranded
Stud Size
3/8 in
Length
2.25 in
Width
1.27 in
Length (Straight Wireway)
2.25 in
Tongue Thickness
0.25 in
Overall Depth
1 1/8 in
Hole Diameter
0.42 in
Overall Length
2.25 in
Tongue Length
1.03 in
Overall Width
1.27 in
For Stud Size
3/8 in
For Stranded Copper Wire Size - Maximum
350 kcmil
For Stranded Copper Wire Size - Minimum
6 AWG
Tongue Width
1.14 in
Conductor Size
6 AWG-350 KCMIL
Dimension - Width mm
29 mm
Dimension - Pad Width inch
1.14 in
Dimension - Hole Size inch
0.42 in
Dimension - Bolt Hole Size inch
0.38 in
Dimension - D inch
1.03 in
Dimension - Stud Size inch
44993
Conductor - Copper Str Size
6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil
Conductor - Copper Str Size Range
6 AWG-350 kcmil
Dimension - Width inch
1.13 in
Dimension - Width fraction
1-13/100 in
Dimension - Length Overall inch
2.25 in
Dimension - Hole Size mm
11 mm
Dimension - Bolt Size fraction
2023-03-08
Dimension - Height fraction
1.2702702702702702 in
Dimension - Height inch
1.27 in
Dimension - N inch
0.52 in
Dimension - L Length Overall mm
57 mm
Conductor - AL Str Size Range
6 AWG-350 kcmil
Conductor - AL Str Size
6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil
For Minimum Wire Size
6 AWG
For Maximum Wire Size
350 kcmil
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 350 kcmil, For Stud Size 3/8 in, Head Style Hex Socket, Number of Holes 1, Hole Diameter 0.42 in, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 1.03 in, Tongue Width 1.14 in, Tongue Thickness 0.25 in
