Mechanical Lug, 6 AWG Max, 2 Hole, Copper
Mfr # CDS35-36-Q
Zoro # G704859451
product price:Â $3.79
/ea
Sold in multiples of 2 for $7.58
Key Features
For Conductor Material
Copper
For Minimum Wire Size
14 AWG
For Maximum Wire Size
6 AWG
Number of Holes
2
Hole Diameter
0.19 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CDS35-36-Q
- Zoro #
- G704859451
- UPC #
- 61305626072
- Country of Origin
- Mexico
Dimensions
- For Minimum Wire Size
- 14 AWG
- For Maximum Wire Size
- 6 AWG
- Hole Diameter
- 0.19 in
- Tongue Width
- 1.6 inches; 40.6 millimeters
- Wire Size
- 6
- Stud Size
- 44636
- Width
- 0.39 in
- Overall Height
- 0.55
- Height
- 0.55 in
- Overall Width
- 0.39
- Overall Length
- 2.17 in
- Overall Length (mm)
- 55.1
- Overall Height (mm)
- 14
- Overall Width (In.)
- 0.39
- Minimum Copper Conductor Size (AWG STR)
- 14
- Hex Size (mm)
- 2
- Overall Length (In.)
- 2.17
- Barrel Length (mm)
- 11.9
- Tongue Thickness (In.)
- 0.06
- Tongue Thickness (mm)
- 1.5
- Stud Hole Size (mm)
- 4.8
- Overall Height (In.)
- 0.55
- Maximum Copper Conductor Size (AWG STR)
- 6
- Overall Width (mm)
- 9.9
- Barrel Length (In.)
- 0.47
Description

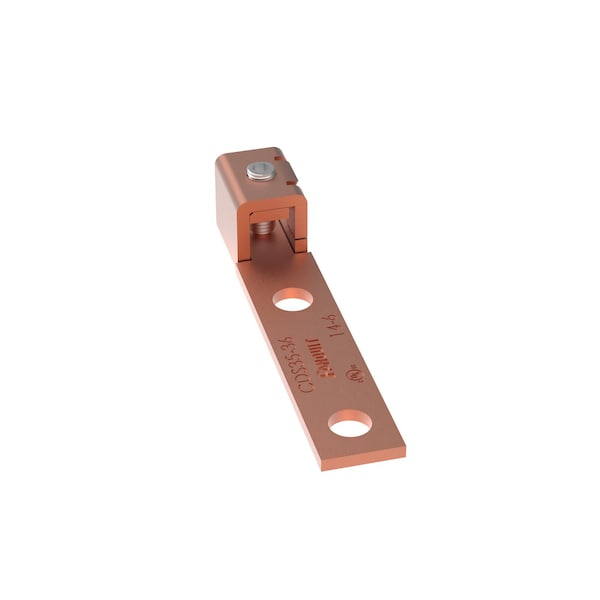

The CDS35-36-C Mechanical Connector Lug two-hole copper, single barrel, is made from high strength electrolytic copper to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel set screw provides a durable electrical contract between conductor and connector. The internal pressure bar and V-bottom collar provide uniform clamping force to assure positive contact.
Restrictions
WARNING:
Cancer and Reproductive Harm
For more information go to
www.P65Warnings.ca.gov
