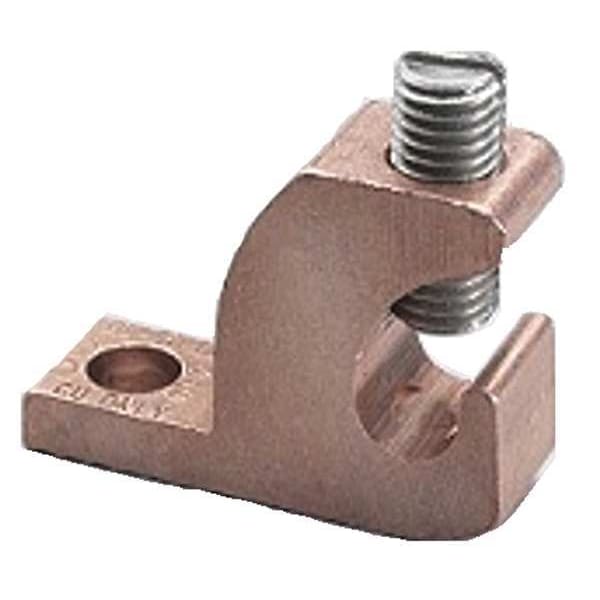

Mechanical Lug, 4 AWG Max, 1 Conductor, 1 Hole, #10 Stud, Copper

  • Mfr # CL501TN

  • Zoro # G4672175

product price:  $89.15
/pk 10, $8.92/ea

Key Features

Connector Type
Lay-In Lug
For Conductor Material
Copper
For Minimum Wire Size
14 AWG
For Maximum Wire Size
4 AWG
Number of Conductors
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CL501TN
Zoro #
G4672175
UPC #
781810558478
Country of Origin
Canada

Dimensions

For Minimum Wire Size
14 AWG
For Maximum Wire Size
4 AWG
For Stud Size
#10
Hole Diameter
0.22 in
Tongue Width
0.38 in
Min. Conductor Size
14 AWG Stranded/Solid
Stud Size
#10
Width
0.85 in
Length
1.13 in
Max. Conductor Size
4 AWG Solid/Stranded
Length (Straight Wireway)
1.13 in
Overall Width
0.85 in
For Stranded Copper Wire Size - Minimum
14 AWG
Tongue Length
0.47 in
Tongue Thickness
0.15 in
Overall Depth
13/16 in
Overall Length
1.13 in
For Stranded Copper Wire Size - Maximum
4 AWG
Dimension - Hole Size inch
0.22 in
Conductor - Copper Str Size Range
14 AWG-4 AWG
Dimension - Hole Size mm
6 mm
Dimension - Width inch
0.38 in
Dimension - Height inch
0.85 in
Dimension - D inch
0.47 in
Dimension - Width mm
10 mm
Dimension - Stud Size inch
17/64
Conductor - Copper Solid Size
14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
Dimension - Length Overall inch
1.13 in
Conductor - Copper Solid Size Range
14 AWG-4 AWG
Dimension - L Length Overall mm
29 mm
Dimension - N inch
0.19 in
Conductor - Copper Str Size
14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG

Details

Item
Mechanical Lug
Connector Type
Lay-In Lug
For Conductor Material
Copper
Number of Conductors
1
Number of Terminations
1
Number of Holes
1
Body Material
Copper
Contact Finish
Tin
Standards
CSA Certified, UL Listed
No. of Conductors
1
No. of Holes
1
Material
Copper
Screw Material
Stainless Steel
Head Style
Slotted
Special Features
Direct Burial Applications In Earth Or Concrete, Open Faced Design
Compatible with Product Type
Grounding Equipments
Type
Open-Faced
Trade Name
QIKLUG
Industry Standard(s)
UL467
Application
For Direct Burial Applications In Concrete Or Earth, For Fast Lay-In Of The Conductor Without The Need For Cutting Or Breaking, For Solar Panel Grounding
Certification - CSA Approved
Yes
Conductor Type
CU C Str-Size
Plated
Y
Plating Type
Tin - Electro Plated
UL Listed
Yes
Material - Hardware
Stainless Steel
Certification - UL Listed Direct Burial
Y

Description

Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, For Stud Size #10, Head Style Slotted, Number of Holes 1, Hole Diameter 0.22 in, Hole Spacing Not Applicable, Body Material Copper, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.47 in, Tongue Width 0.38 in, Tongue Thickness 0.15 in, Connector Type Lay-In Lug, Standards CSA Certified, UL Listed
