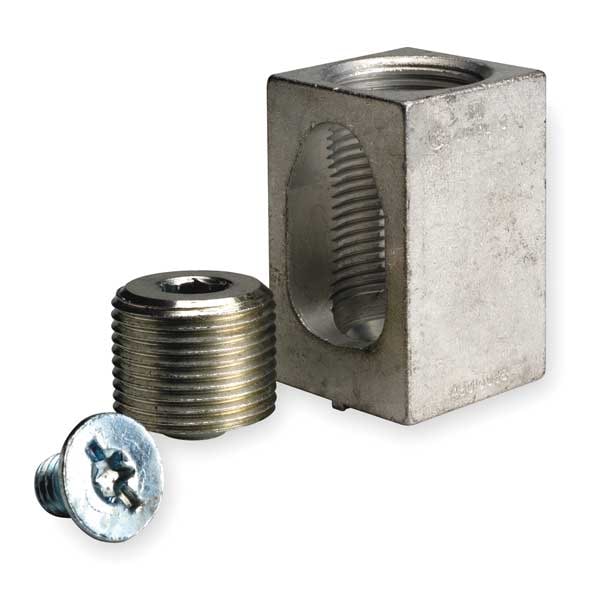

Mechanical Lug, 600 kcmil Max, 1 Conductor, Tin-Plated Aluminum
- Mfr # AL400LA
- Zoro # G8493441
product price:Â
$
43.15
/ea
Key Features
For Conductor Material
Aluminum, Copper
For Minimum Wire Size
1 AWG
For Maximum Wire Size
600 kcmil
Number of Conductors
1
Number of Terminations
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- AL400LA
- Zoro #
- G8493441
- UPC #
- 785901368236
- Country of Origin
- Korea, Republic of
- Item
- Mechanical Lug
- For Conductor Material
- Aluminum, Copper
- Number of Conductors
- 1
- Number of Terminations
- 1
- Number of Holes
- 1
- Body Material
- Tin-Plated Aluminum
- Contact Finish
- Tin
- Maximum Voltage
- 600 V
- Maximum Operating Temperature
- 221 Degrees F
- Standards
- CE, CSA Certified, UL Listed
- Material
- Tin-Plated Aluminum
- No. of Conductors
- 1
- Torque
- 120 in-lb
- Number of Pieces
- 3
- Compatible with Product Type
- Circuit Breaker
- Tightening Torque
- 42-42 N.m 42-300 mm² (AWG 1...600 kcmil) || 42-42 N.m 42-127 mm² (AWG 1...250 kcmil)
- Connector Type
- Lug Kit
- UL 94 Flammability Rating
- V-0
- Hole Spacing
- 0.88 in
- Color
- Silver
- Head Style
- Hex Socket
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 1 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, For Stud Size 1/4 in, Head Style Hex Socket, Number of Holes 1, Hole Diameter 0.34 in, Hole Spacing 0.88 in, Body Material Tin-Plated Aluminum, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Width Not Applicable, Tongue Offset Height Not Applicable
