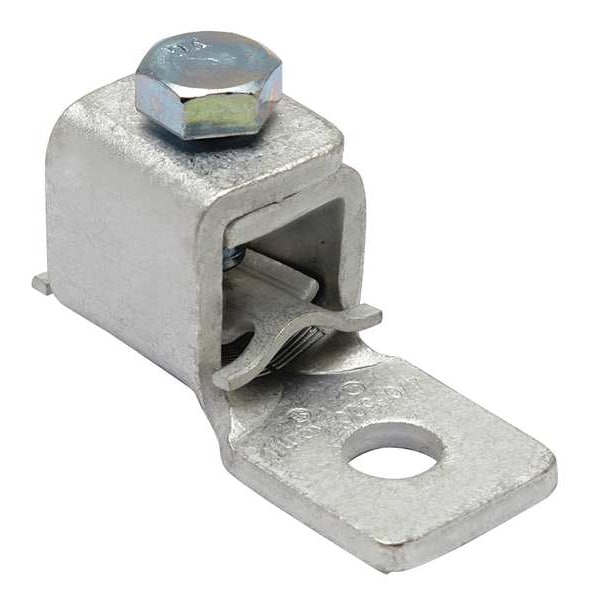

Mechanical Lug, 4 AWG Max, 1 Conductor, 1 Hole, 1/4 in Stud, Copper
- Mfr # KPA4C
- Zoro # G4666645
product price:Â
$
5.65
/ea
Key Features
For Conductor Material
Copper
For Minimum Wire Size
14 AWG
For Maximum Wire Size
4 AWG
Number of Conductors
1
Number of Terminations
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- KPA4C
- Zoro #
- G4666645
- UPC #
- 781810554067
- Country of Origin
- United States
Dimensions
- For Minimum Wire Size
- 14 AWG
- For Maximum Wire Size
- 4 AWG
- For Stud Size
- 1/4 in
- Hole Diameter
- 0.27 in
- Tongue Width
- 0.5 in
- Min. Conductor Size
- 14 AWG Stranded/Solid
- Stud Size
- 1/4 in
- Length
- 1.22 in
- Width
- 0.94 in
- Max. Conductor Size
- 4 AWG Stranded/Solid
- Length (Straight Wireway)
- 1.21 in
- Tongue Thickness
- 0.06 in
- Overall Width
- 0.94 in
- For Stranded Copper Wire Size - Maximum
- 4 AWG
- Overall Depth
- 1/2 in
- For Stranded Copper Wire Size - Minimum
- 14 AWG
- Overall Length
- 1.22 in
- Tongue Length
- 0.59 in
- Conductor Size
- 14-4 AWG
- Dimension - L Length Overall mm
- 31 mm
- Dimension - Length Overall inch
- 1.22 in
- Dimension - Stud Size inch
- 44930
- Dimension - Hole Size inch
- 0.27 in
- Dimension - Bolt Size fraction
- 2023-01-04
- Dimension - Pad Width inch
- 0.50 in
- Conductor - Copper Str Navy Size Range
- 23 (7) Navy-40 (19) Navy
- Dimension - D inch
- 0.59 in
- Conductor - Copper Str Size
- 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
- Conductor - Copper Solid Size Range
- 14 AWG-4 AWG
- Conductor - Copper Solid Size
- 14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
- Dimension - Height inch
- 0.94 in
- Dimension - Height fraction
- 47/50 in
- Dimension - N inch
- 0.30 in
- Conductor - Copper Str Size Range
- 14 AWG-4 AWG
- Conductor - Copper Str Navy Size
- 23 (7) Navy;30 (19) Navy;40 (19) Navy
- Dimension - Hole Size mm
- 7 mm
- Wire Rope Length
- 1.22 in
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, For Stud Size 1/4 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.27 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.59 in, Tongue Width 0.5 in, Tongue Thickness 0.06 in, Connector Type Terminal
