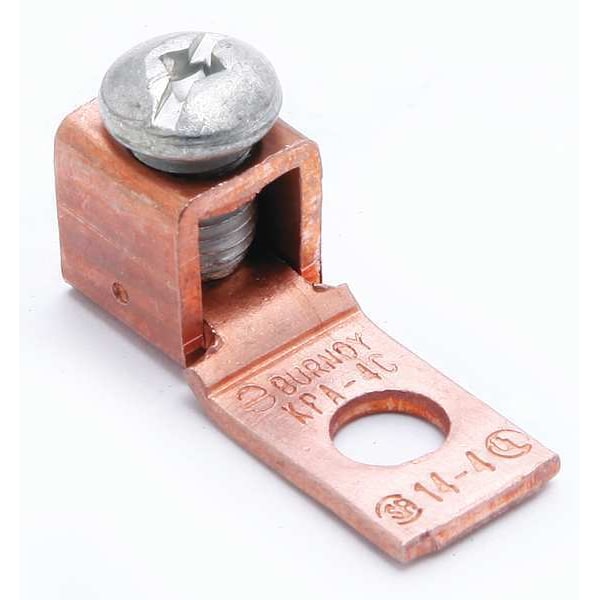

Mechanical Lug, 4 AWG Max, 1 Conductor, 1 Hole, 1/4 in Stud, Copper
Mfr # KPA4CUP
Zoro # G4652943
product price:Â $5.29
/eaKey Features
Connector Type
Terminal
For Conductor Material
Copper
For Minimum Wire Size
14 AWG
For Maximum Wire Size
4 AWG
Number of Conductors
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- KPA4CUP
- Zoro #
- G4652943
- UPC #
- 781810554074
- Country of Origin
- India
Dimensions
- For Minimum Wire Size
- 14 AWG
- For Maximum Wire Size
- 4 AWG
- For Stud Size
- 1/4 in
- Hole Diameter
- 0.28 in
- Tongue Width
- 0.50 in
- Max. Conductor Size
- 4 AWG Stranded/Solid
- Length
- 1.28 in
- Stud Size
- 1/4 in
- Min. Conductor Size
- 14 AWG Stranded/Solid
- Width
- 1.0 in
- Length (Straight Wireway)
- 1.28 in
- Overall Length
- 1.28 in
- Tongue Thickness
- 0.07 in
- Overall Width
- 1 in
- Strip Length
- 9/16 in
- Tongue Length
- 0.71 in
- For Stranded Copper Wire Size - Maximum
- 4 AWG
- Overall Depth
- 1/2 in
- For Stranded Copper Wire Size - Minimum
- 14 AWG
- Conductor Size
- 14-4 AWG
- Dimension - L Length Overall mm
- 33 mm
- Dimension - Hole Size inch
- 0.28 in
- Conductor - Copper Str Size
- 14;12;10;9;8;7;6;5;4
- Conductor - Copper Solid Size Range
- 14-4
- Conductor - Copper Str Size Range
- 14-4
- Dimension - Strip Length inch
- 45185
- Conductor - Copper Solid Size
- 14;13;12;11;10;9;8;7;6;5;4
- Dimension - Height inch
- 1.00 in
- Dimension - Height fraction
- 1 in
- Dimension - Pad Width inch
- 0.50 in
- Dimension - N inch
- 0.33 in
- Dimension - Bolt Size fraction
- 2023-01-04
- Dimension - Length Overall inch
- 1.28 in
- Dimension - Hole Size mm
- 7 mm
- Dimension - Stud Size inch
- 44930
- Dimension - D inch
- 0.71 in
- Wire Rope Length
- 1.28 in
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, For Stud Size 1/4 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.28 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.71 in, Tongue Width 0.5 in, Tongue Thickness 0.07 in, Connector Type Terminal
