CAD Viewer & Download Files

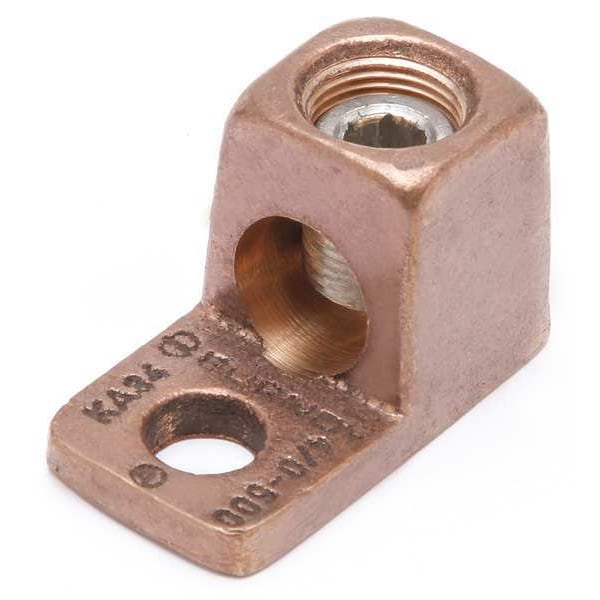

Mechanical Lug, 4/0 AWG Max, 1 Conductor, 1 Hole, 3/8 in Stud, Copper
Mfr # KA28
Zoro # G4651972
CAD Available
product price: $21.25
/eaKey Features
CAD Drawing
For Conductor Material
Copper
For Minimum Wire Size
1 AWG
For Maximum Wire Size
4/0 AWG
Number of Conductors
1
Number of Terminations
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KA28
Zoro #
G4651972
UPC #
781810554296
Country of Origin
Mexico
Dimensions
For Minimum Wire Size
1 AWG
For Maximum Wire Size
4/0 AWG
For Stud Size
3/8 in
Hole Diameter
0.42 in
Tongue Width
1.94 in
Width
1.25 in
Length
1.94 in
Stud Size
3/8 in
Min. Conductor Size
1 AWG Stranded
Max. Conductor Size
4/0 AWG Stranded
Length (Straight Wireway)
1.94 in
Overall Width
1.25 in
Overall Depth
15/16 in
Overall Length
1.94 in
For Stranded Copper Wire Size - Minimum
1 AWG
Tongue Thickness
0.19 in
For Stranded Copper Wire Size - Maximum
4/0 AWG
Conductor Size
1-4/0 AWG
Dimension - Stud Size inch
44993
Dimension - L Length Overall mm
49 mm
Dimension - Height fraction
1-1/4 in
Dimension - Hole Size mm
11 mm
Dimension - Bolt Size fraction
2023-03-08
Dimension - Hole Size fraction
27/64
Dimension - Hole Size inch
0.42 in
Dimension - Pad Width inch
0.94 in
Dimension - N inch
0.44 in
Dimension - B Length fraction
64/79 in
Dimension - B Length inch
0.81 in
Conductor - Copper Str Size Range
1 AWG-4/0 AWG
Conductor - Copper Str Size
1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
Dimension - Length Overall inch
1.94 in
Dimension - Height inch
1.25 in
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 1 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, For Stud Size 3/8 in, Head Style Hex Socket, Number of Holes 1, Hole Diameter 0.42 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 1.94 in, Tongue Thickness 0.19 in, Connector Type Terminal
