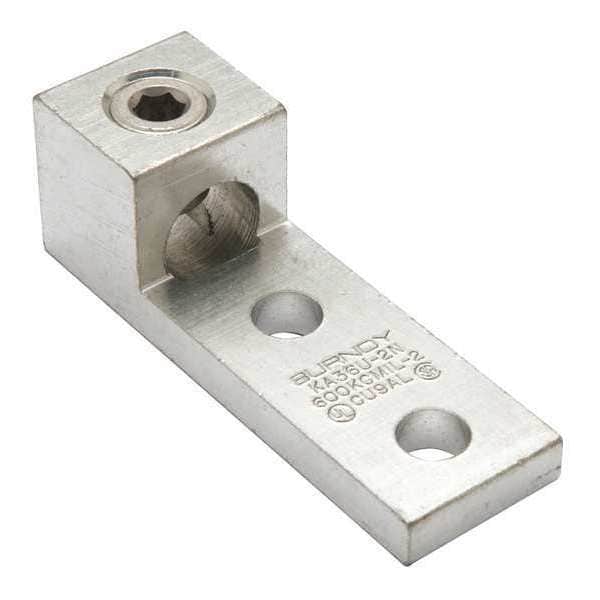

Mechanical Lug, 600 kcmil Max, 1 Conductor, 2 Hole, 1/2 in Stud, Aluminum
Mfr # KA36U2N
Zoro # G4697122
CAD Available
product price: $32.99
/eaKey Features
CAD Drawing
No. of Conductors
1
Min. Conductor Size
1 AWG Solid, 2 AWG Stranded
Max. Conductor Size
4/0 AWG Solid, 600 kcmil Stranded
Number of Holes
2
Stud Size
1/2 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KA36U2N
Zoro #
G4697122
UPC #
781810559154
Country of Origin
United States
Dimensions
Min. Conductor Size
1 AWG Solid, 2 AWG Stranded
Max. Conductor Size
4/0 AWG Solid, 600 kcmil Stranded
Stud Size
1/2 in
Length
4.69 in
Width
1.57 in
Length (Straight Wireway)
4.69 in
Tongue Length
3.22 in
For Stranded Copper Wire Size - Minimum
2 AWG
Overall Length
4.69 in
Tongue Thickness
0.44 in
Hole Diameter
0.56 in
For Stud Size
1/2 in
Overall Depth
1 9/16 in
For Stranded Copper Wire Size - Maximum
600 kcmil
Tongue Width
1.52 in
Overall Width
1.57 in
Conductor Size
2 AWG-600 KCMIL
Dimension - Width inch
1.50 in
Conductor - Copper Str Size Range
2 AWG-600 kcmil
Conductor - Copper Solid Size Range
1 AWG-4/0 AWG
Dimension - Length Overall inch
4.69 in
Dimension - Height fraction
1.5714285714285714 in
Dimension - Hole Size mm
14 mm
Dimension - Stud Size inch
44928
Dimension - Width fraction
1-1/2 in
Dimension - D inch
3.22 in
Dimension - Hole Size inch
0.56 in
Dimension - Height inch
1.57 in
Conductor - AL Str Size
2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil
Dimension - L Length Overall mm
119 mm
Dimension - N inch
0.63 in
Dimension - Width mm
38 mm
Dimension - Bolt Hole Size inch
0.50 in
Conductor - Copper Str Size
2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil
Conductor - AL Str Size Range
2 AWG-600 kcmil
Conductor - Copper Solid Size
1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Dimension - Bolt Size fraction
1 to 2
Dimension - Pad Width inch
1.52 in
For Minimum Wire Size
2 AWG
For Maximum Wire Size
600 kcmil
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 600 kcmil, For Stud Size 1/2 in, Head Style Hex Socket, Number of Holes 2, Hole Diameter 0.56 in, Hole Spacing 1.75 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 3.22 in, Tongue Width 1.52 in, Tongue Thickness 0.44 in
