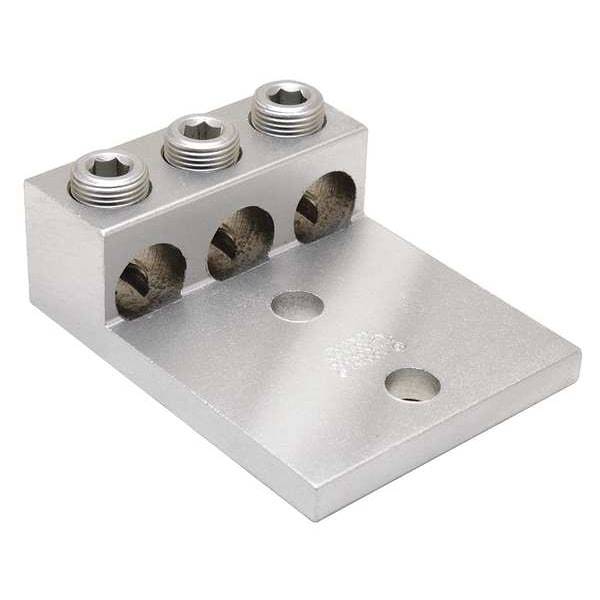

Mechanical Lug, 600 kcmil Max, 3 Conductor, 2 Hole, 1/2 in Stud, Aluminum
Mfr # K3A36U2N
Zoro # G4667835
CAD Available
product price: $107.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
No. of Conductors
3
Min. Conductor Size
2 AWG Stranded
Max. Conductor Size
600 kcmil Stranded
Number of Holes
2
Stud Size
1/2 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
K3A36U2N
Zoro #
G4667835
UPC #
781810554487
Country of Origin
United States
Dimensions
Min. Conductor Size
2 AWG Stranded
Max. Conductor Size
600 kcmil Stranded
Stud Size
1/2 in
Length
4.69 in
Width
3.63 in
Length (Straight Wireway)
4.69 in
For Stud Size
1/2 in
Hole Diameter
0.56 in
For Stranded Copper Wire Size - Minimum
2 AWG
Tongue Length
3.22 in
Overall Length
4.69 in
Tongue Thickness
0.44 in
Overall Depth
3 5/8 in
For Stranded Copper Wire Size - Maximum
600 kcmil
Overall Width
1.56 in
Tongue Width
3.63 in
Conductor Size
2 AWG-600 KCMIL
Dimension - Hole Size fraction
45185
Dimension - Bolt Hole Size inch
0.57 in
Conductor - Copper Str Size Range
2 Str. - 600 Kcmil
Dimension - Stud Size inch
1/2 in
Dimension - L Length Overall mm
119.12 mm
Conductor - Copper Str Size
2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil
Dimension - Hole Size mm
14 mm
Conductor - AL Str Size
2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil
Dimension - Width inch
3.64 in
Dimension - D inch
3.22 in
Conductor - AL Str Size Range
2 Str. - 600 Kcmil
Dimension - N inch
0.63 in
Dimension - Height inch
1.56 in
Dimension - Hole Size inch
0.56 in
Dimension - Pad Width inch
3.64 in
Dimension - Width fraction
3-63/100 in
Dimension - Length Overall inch
4.69 in
Dimension - Width mm
92 mm
Dimension - Bolt Size fraction
1 to 2
Dimension - Height fraction
1.5555555555555556 in
For Maximum Wire Size
600 kcmil
For Minimum Wire Size
2 AWG
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 600 kcmil, For Stud Size 1/2 in, Head Style Slotted, Number of Holes 2, Hole Diameter 0.56 in, Hole Spacing 1.75 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 3, Number of Terminations 3, Tongue Length 3.22 in, Tongue Width 3.63 in, Tongue Thickness 0.44 in
