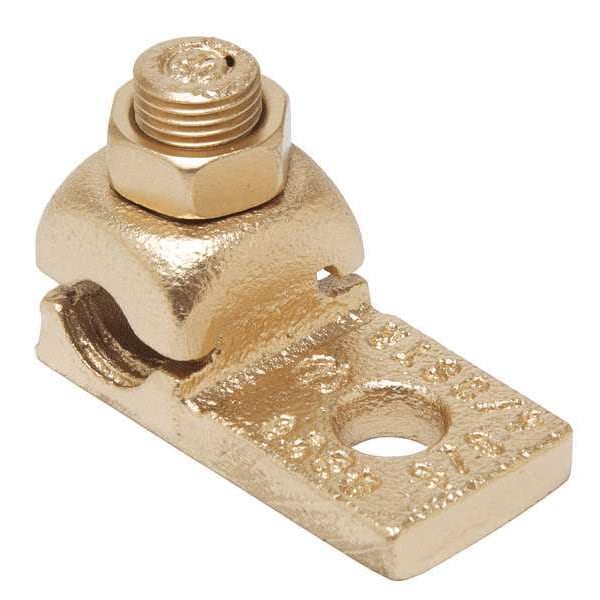

Mechanical Lug, 8 AWG Max, 1 Conductor, 1 Hole, #10 Stud, Copper
Mfr # QA8CB
Zoro # G4685037
product price: $28.19
/eaKey Features
For Conductor Material
Copper
For Minimum Wire Size
14 AWG
For Maximum Wire Size
8 AWG
Number of Conductors
1
Number of Terminations
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
QA8CB
Zoro #
G4685037
UPC #
781810553664
Country of Origin
Mexico
Dimensions
For Minimum Wire Size
14 AWG
For Maximum Wire Size
8 AWG
For Stud Size
#10
Hole Diameter
0.22 in
Tongue Width
0.56 in
Min. Conductor Size
14 AWG Stranded/Solid
Max. Conductor Size
8 AWG Stranded/Solid
Length
1.38 in
Width
0.69 in
Stud Size
#10
Length (Straight Wireway)
1.38 in
Overall Width
0.69 in
Tongue Thickness
0.16 in
For Stranded Copper Wire Size - Minimum
14 AWG
Overall Depth
9/16 in
For Stranded Copper Wire Size - Maximum
8 AWG
Overall Length
1.38 in
Tongue Length
0.56 in
Conductor Size
14-8 AWG
Dimension - Hole Size mm
6 mm
Dimension - Width mm
14 mm
Conductor - Copper Solid Size
14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG
Dimension - Pad Width inch
0.56 in
Conductor - Copper Solid Size Range
14 AWG-8 AWG
Dimension - Height inch
0.69 in
Dimension - Length Overall inch
1.38 in
Dimension - N inch
0.28 in
Dimension - Stud Size inch
#10
Conductor - Copper Str Size
14 AWG;12 AWG;10 AWG;9 AWG;8 AWG
Dimension - L Length Overall mm
35 mm
Conductor - Copper Str Navy Size Range
4 (1) Navy-14 (140) Navy
Conductor - Copper Str Navy Size
4 (1) Navy;4 (7) Navy;4 (19) Navy;4 (41) Navy;6 (7) Navy;6 (19) Navy;9 (7) Navy;9 (37) Navy;14 (7) Navy;14 (140) Navy
Dimension - D inch
0.56 in
Dimension - Height fraction
45246
Conductor - Copper Str Size Range
14 AWG-8 AWG
Dimension - Hole Size fraction
11871
Dimension - Hole Size inch
0.22 in
Dimension - Bolt Size fraction
#10
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 8 AWG, For Stud Size #10, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.22 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.56 in, Tongue Width 0.56 in, Tongue Thickness 0.16 in, Connector Type Terminal
