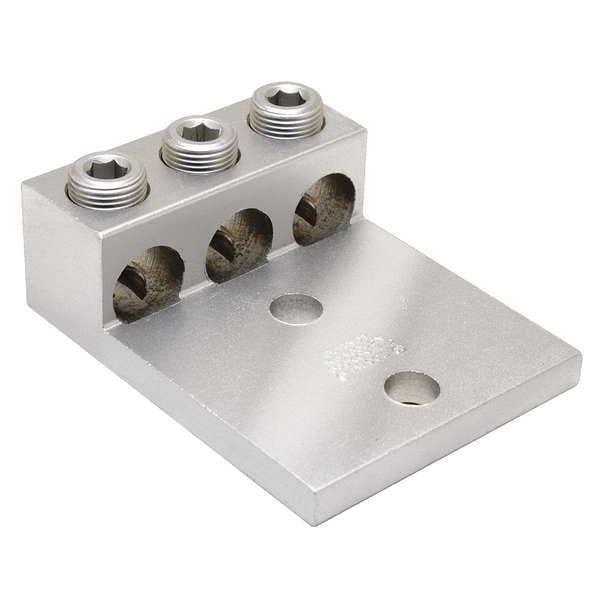

Mechanical Lug, 250 kcmil Max, 3 Conductor, 2 Hole, 1/2 in Stud, Aluminum
Mfr # K3A29U2N
Zoro # G4694855
CAD Available
product price:Â $66.95
/eaKey Features
CAD Drawing
For Conductor Material
Aluminum, Copper
For Minimum Wire Size
6 AWG
For Maximum Wire Size
250 kcmil
Number of Conductors
3
Number of Terminations
3
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
K3A29U2N
Zoro #
G4694855
UPC #
781810554456
Country of Origin
United States
Dimensions
For Minimum Wire Size
6 AWG
For Maximum Wire Size
250 kcmil
For Stud Size
1/2 in
Hole Diameter
0.56 in
Tongue Width
2.81 in
Width
2.81 in
Stud Size
1/2 in
Max. Conductor Size
250 kcmil Stranded
Length
4.0 in
Min. Conductor Size
6 AWG Stranded
Length (Straight Wireway)
4.0 in
For Stranded Copper Wire Size - Minimum
6 AWG
Tongue Thickness
0.31 in
For Stranded Copper Wire Size - Maximum
250 kcmil
Overall Width
1.19 in
Tongue Length
3.16 in
Overall Length
4 in
Overall Depth
3 in
Conductor Size
6 AWG-250 KCMIL
Dimension - Bolt Hole Size inch
0.57 in
Dimension - Width mm
71 mm
Dimension - Hole Size mm
14 mm
Dimension - Hole Size fraction
45185
Dimension - Hole Size inch
0.56 in
Dimension - Height inch
1.19 in
Dimension - Width fraction
2-81/100 in
Dimension - N inch
0.63 in
Conductor - Copper Str Size Range
6 Str.-250 Kcmil
Dimension - D inch
3.16 in
Conductor - AL Str Size
6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
Dimension - Pad Width inch
3.01 in
Dimension - Bolt Size fraction
1 to 2
Dimension - L Length Overall mm
101.6 mm
Dimension - Width inch
2.81 in
Dimension - Height fraction
1.2 in
Dimension - Stud Size inch
1/2 in
Conductor - Copper Str Size
6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
Conductor - AL Str Size Range
6 Str.-250 Kcmil
Dimension - Length Overall inch
4.0 in
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, For Stud Size 1/2 in, Head Style Slotted, Number of Holes 2, Hole Diameter 0.56 in, Hole Spacing 1.75 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 3, Number of Terminations 3, Tongue Length 3.16 in, Tongue Width 2.81 in, Tongue Thickness 0.31 in
