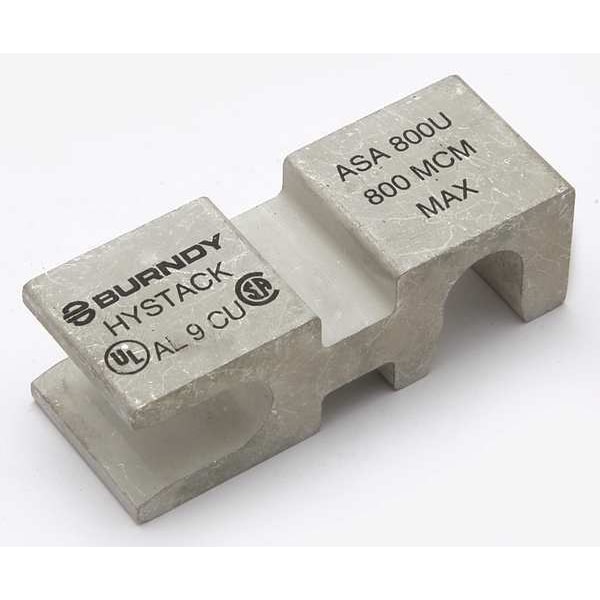

  11. Mechanical Lug, 800 kcmil Max, 2 Hole, Not Applicable Stud, Aluminum, Copper
Burndy Mechanical Lug, 800 kcmil Max, 2 Hole, Not Applicable Stud, Aluminum, Copper ASA800U - main

CAD Drawings

Download CAD Files

Mechanical Lug, 800 kcmil Max, 2 Hole, Not Applicable Stud, Aluminum, Copper

  • Mfr # ASA800U

  • Zoro # G4656355

CAD Available
product price: $14.39
/ea

Key Features

CAD Drawing
Min. Conductor Size
1/0 AWG Stranded
Max. Conductor Size
800 kcmil Stranded
Number of Holes
2
Material
Tin-Plated Aluminum
Length
1.13 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ASA800U
Zoro #
G4656355
UPC #
781810554692
Country of Origin
United States

Dimensions

Min. Conductor Size
1/0 AWG Stranded
Max. Conductor Size
800 kcmil Stranded
Length
1.13 in
Width
1.0 in
Length (Straight Wireway)
1.13 in
For Stranded Copper Wire Size - Maximum
800 kcmil
Overall Depth
1 1/8 in
Overall Length
0.78 in
For Stranded Copper Wire Size - Minimum
1/0 AWG
Overall Width
1 in
Dimension - Pad Width inch
1.00 in
Conductor - Copper Str Size Range
1/0 -800 kcmil
Dimension - Length Overall inch
0.78 in
Dimension - Bolt Size inch
3.50 in
Conductor - AL Str Size Range
1/0 AWG-800 kcmil
Dimension - Height fraction
1-1/8 in
Dimension - L Length Overall mm
20 mm
Dimension - Height inch
1.13 in
Conductor - Copper Str Size
1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil;800 kcmil
Conductor - AL Str Size
1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil
For Maximum Wire Size
800 kcmil
For Minimum Wire Size
1/0 AWG

Details

Item
Mechanical Lug
Number of Holes
2
Material
Tin-Plated Aluminum
Standards
CSA Certified
Body Material
Aluminum, Copper
Special Features
The HYSTACK Adaptor Is Specially Designed To Allow Standard Terminals To Be Stacked On Two Or Four Hole NEMA Transformer Or Equipment Terminal Pads, HYSTACK Is Tin-Plated, High-Conductivity Aluminum To Provide Optimum Corrosion Resistance, Only Three Sizes Accommodate Terminals From 250 MCM Through 1000 MCM To Help Keep Costly Inventories To A Minimum
Maximum Voltage
600 V
RoHS Compliant
Yes
Maximum Operating Temperature
194 Degrees F
For Conductor Material
Aluminum
Contact Finish
Tin
Type
Stacking Adapters
Plating Type
Tin
Plated
Y
Physical Attribute - Screw Type
Hexagonal Bolt
Application
For Aluminum And Copper Terminals
Conductor Type
AL C Str-SizeCU C Str-Size
UL Listed
Yes
Rating - Minimum Voltage
600
Material - Hardware
DURIUMâ„¢ Silicon Bronze
Certification - UL Listed Direct Burial
No
Trade Name
HYSTACKâ„¢
Temperature Rating
194° F
Physical Attribute - Number of Holes
2
Certification - CSA Approved
Yes
Installation Torque Recommended in-lb
480 LBS/in
Physical Attribute - Number of Screws
2
CAD Available
Yes

Description

Mechanical Connector, For Conductor Material Aluminum, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 800 kcmil, For Stud Size Not Applicable, Number of Holes Not Applicable, Hole Diameter Not Applicable, Hole Spacing Not Applicable, Body Material Aluminum, Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Terminations Not Applicable, Tongue Width Not Applicable, Tongue Thickness Not Applicable
