  6. One-Hole Compression Lug, 1 AWG Max, 5/8 in Stud, Long Barrel, Copper, None
Burndy One-Hole Compression Lug, 1 AWG Max, 5/8 in Stud, Long Barrel, Copper, None YAD1CM16E58 - main

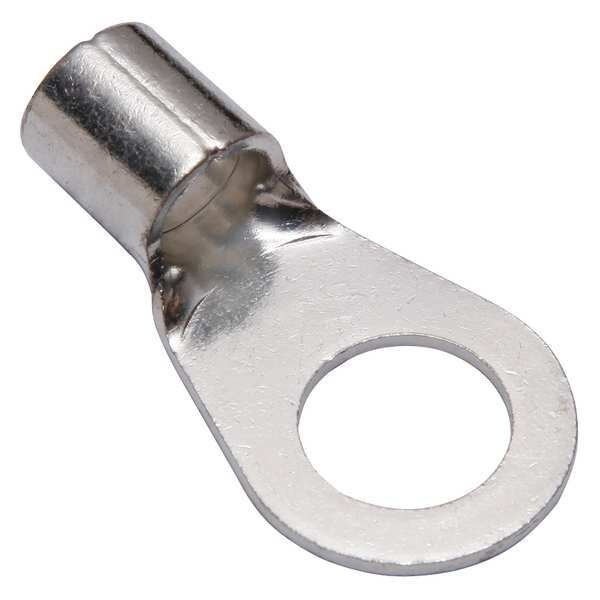

One-Hole Compression Lug, 1 AWG Max, 5/8 in Stud, Long Barrel, Copper, None

  • Mfr # YAD1CM16E58

  • Zoro # G6119461

product price:  $8.19
/ea

Key Features

For Wire Size
1 AWG
For Conductor Material
Copper
For Stud Size
5/8 in
Material
Copper
Barrel Size
Long
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
YAD1CM16E58
Zoro #
G6119461
UPC #
781810668108
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
1 AWG
For Stud Size
5/8 in
Barrel Size
Long
Tongue Width
1.1 in
Tongue Width - Wire Connector
1.1 in
Cable Size
1 AWG
Length
2.13"
Overall Length
2.12 in
Barrel Length
0.63 in
Width
1.1"
Strip Length
3/4 in
Hole Diameter
0.67 in
Minimum Wire Size
1 AWG
Maximum Wire Size
1 AWG
Barrel Outside Diameter
0.57 in
Tongue Length
1.49 in
Tongue Thickness
0.07 in
Conductor - Copper Str Size
1 AWG
Dimension - B Length inch
0.63 in
Dimension - Length Overall inch
2.12 in
Dimension - Bolt Size fraction
2023-05-08
Dimension - Strip Length inch
44989
Dimension - Stud Size inch
45054
Dimension - Pad Width inch
1.10 in
Dimension - Outside Diameter inch
0.57 in
Dimension - L Length Overall mm
54 mm
Conductor Size
1 AWG
Dimension - Hole Size inch
0.67 in

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Inspection Hole
No
Die Code
1019
Color Code
None
Standards
UL 467
Connector Type
YAD
Max. Temp.
302 Degrees F
Connection Material
Tin Plater Copper
Wire Range
1 AWG
Insulation Type
Non-Insulated
Hole Center to End
1.570"
Plate Material
Tin
Insulation Color
Bare
Peep Hole
No
Seam
Brazed
Tongue Style
Ring
Max. Voltage
600 V
Compatible with Product Type
Code, Flex Cable
Contact Finish
Tin
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Hole Spacing
0.94 in
Insulation Material
None
Seam Style
Brazed
Maximum Voltage
600 V
Terminal Shape
Ring Tongue
Insulation Coverage
None
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Contact Material
Copper
Minimum Operating Temperature
302 Degrees F
RoHS Compliant
Yes
Termination Style
Crimp
Maximum Operating Temperature
302 Degrees F
Barrel Style
Brazed
Item Type
3B
Type
Ring Tongue
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Physical Attribute - Tongue Type
Ring
Plating Type
Tin
Voltage - Maximum
600 V
Conductor Type
CU C Str-SizeCU C Flex-Size
Feature - Barrel Type
Long
Plated
Y
Industry Standard(s)
UL467
Trade Name
HYLUGâ„¢

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 1 AWG, Maximum Wire Size 1 AWG, Termination Style Crimp, Tongue Width 1.1 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.63 in, Barrel Outside Diameter 0.57 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221
