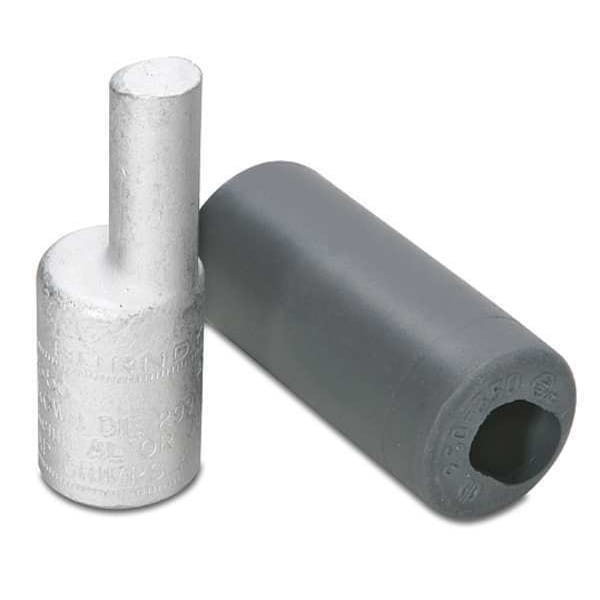

Offset Adapter, 250 kcmil Max, Standard Barrel, Aluminum, Brown, 5 PK
Mfr # AYPO250
Zoro # G4690016
product price:Â
$
247.99
/pk 5, $49.60/ea
Free Shipping & Returns
Key Features
For Wire Size
250 kcmil
For Conductor Material
Copper, Aluminum
Material
Aluminum
Barrel Size
Standard
Die Code
299
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- AYPO250
- Zoro #
- G4690016
- UPC #
- 781810556382
- Country of Origin
- United States
Dimensions
- For Wire Size
- 250 kcmil
- Barrel Size
- Standard
- Diameter
- 15/32 in
- Max. Wire Size
- 250 kcmil
- Width
- 1.11 in
- Length
- 2.98 in
- Min. Wire Size
- 1/0 AWG
- Length (Straight Wireway)
- 2.98 in
- Pin Length
- 1.22 in
- Barrel Diameter
- 1.11 in
- Pin Equivalent Wire Size
- 3/0 AWG
- Overall Length
- 2.98 in
- Pin Diameter
- 0.469 in
- For Stranded Copper Wire Size - Maximum
- 250 kcmil
- For Stranded Copper Wire Size - Minimum
- 250 kcmil
- For Stranded Aluminum Wire Size - Maximum
- 250 kcmil
- Strip Length
- 1 1/16 in
- Barrel Length
- 1.07 in
- Dimension - B Length fraction
- 1-1/16 in
- Dimension - B Outside Diameter inch
- 0.47 in
- Conductor - AL Str Size Range
- 250 kcmil
- Conductor - Copper Flex M Size
- 4/0 AWG
- Conductor - Copper Flex I Size Range
- 4/0 AWG
- Conductor - Copper Str Size Range
- 250 kcmil
- Conductor - Copper Flex K Size Range
- 4/0 AWG
- Dimension - Strip Length inch
- 1-1/8 in
- Conductor - Copper Str Size
- 250 KCMIL
- Conductor - Copper Str Compact Size
- 250 KCMIL
- Dimension - B Length inch
- 1.07 in
- Dimension - A Outside Diameter inch
- 1.10 in
- Equivalent Pin Size
- 3/0 AWG
- Conductor - Copper Flex K Size
- 4/0 AWG
- Conductor Size
- 250 KCMIL
- Conductor - Copper Flex I Size
- 250 KCMIL
- Conductor - Copper DLO Size Range
- 4/0 AWG
- Dimension - Length Overall inch
- 2.98 in
- Dimension - L Length Overall mm
- 76 mm
- Dimension - P inch
- 1.22 in
- Conductor - AL Str Size
- 250 KCMIL
- Conductor - Copper DLO Size
- 4/0 AWG
- For Minimum Wire Size - Solid
- 1/0 AWG
- Maximum Run Wire Size
- 250 kcmil
- Minimum Run Wire Size
- 1/0 AWG
- For Maximum Wire Size - Solid
- 250 kcmil
- For Minimum Wire Size - Stranded
- 1/0 AWG
- For Maximum Wire Size - Stranded
- 250 kcmil
- Minimum Wire Size
- 1/0 AWG
- Maximum Wire Size
- 250 kcmil
- Wire Rope Length
- 2.98 in
Description
Compression Pin Terminals, Connection Orientation Offset, Die Code 299, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 250 kcmil, For Stranded Copper Wire Size - Maximum 250 kcmil, Insulation Material Rubber, Maximum Voltage 35 kV, Number of Crimps 2, Pin Diameter 0.469 in, Pin Equivalent Wire Size 3/0 AWG, Pin Length 1.22 in, Contact Finish Tin, Contact Material Aluminum, Barrel Diameter 1.11 in, Barrel Length 1.07 in, Color Code Brown
