  11. Offset Adapter, 3/0 AWG Max, Standard Barrel, Aluminum, White

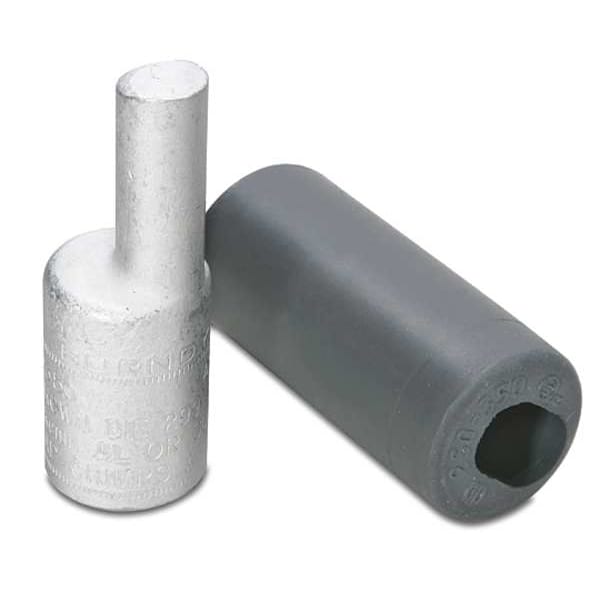

Burndy Offset Adapter, 3/0 AWG Max, Standard Barrel, Aluminum, White AYPO3/0 - main

CAD Drawings

Download CAD Files

Offset Adapter, 3/0 AWG Max, Standard Barrel, Aluminum, White

  • Mfr # AYPO3/0

  • Zoro # G4679552

CAD Available
product price: $38.29
/ea

Key Features

CAD Drawing
For Wire Size
3/0 AWG
For Conductor Material
Aluminum, Copper
Material
Aluminum
Barrel Size
Standard
Die Code
298
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AYPO3/0
Zoro #
G4679552
UPC #
781810556320
Country of Origin
United States

Dimensions

For Wire Size
3/0 AWG
Barrel Size
Standard
Length
2.8 in
Width
0.86 in
Max. Wire Size
3/0 AWG
Diameter
3/8 in
Min. Wire Size
1 AWG
Length (Straight Wireway)
2.8 in
For Stranded Aluminum Wire Size - Maximum
3/0 AWG
Strip Length
1 1/16 in
Barrel Diameter
0.86 in
For Stranded Copper Wire Size - Maximum
3/0 AWG
For Stranded Copper Wire Size - Minimum
3/0 AWG
Barrel Length
1.11 in
Pin Length
1.22 in
Pin Equivalent Wire Size
1/0 AWG
Pin Diameter
0.375 in
Overall Length
2.8 in
Dimension - Length Overall inch
2.80 in
Conductor - AL Str Size
3/0 AWG
Conductor - Copper Str Size Range
3/0 AWG
Conductor - Copper Flex I Size Range
2/0 AWG
Dimension - A Outside Diameter inch
.85 in
Conductor - AL Str Size Range
3/0 AWG
Conductor - Copper DLO Size Range
2/0 AWG
Equivalent Pin Size
1/0 AWG
Maximum Wire Size
3/0 AWG
For Maximum Wire Size - Stranded
3/0 AWG
For Maximum Wire Size - Solid
3/0 AWG
For Minimum Wire Size - Solid
1 AWG
Maximum Run Wire Size
3/0 AWG

Details

Item
Offset Adapter
For Conductor Material
Aluminum, Copper
Material
Aluminum
Die Code
298
Color Code
White
Standards
CSA Approved; UL468A-468B; UL Listed
For Use With
Hytools Dieless Tools MY29-3, Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V
Wire Range
3/0 AWG Aluminum; 2/0 AWG Copper
Color
White
Max. Voltage
35 kv
Max. Temp.
194°F
Application
For Aluminum and Copper Conductors, Mechanical Connectors in Molded Case Circuit Breakers, Panel Board Equipment and Meter Sockets
Insulation Material
Rubber
Connection Material
Aluminum
Number of Crimps
2
Contact Material
Aluminum
Contact Finish
Tin
Compatible Installation Tool Model Number
Hytools Dieless Tools MY29-3, Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V
Connection Orientation
Offset
Maximum Voltage
35 kV
Type
Pin Adapter
Finish
Tin Plated
Insulated
Yes
UL Listed
Yes
Finish Type
Tin-Plated
Voltage Rating
35 kV
Industry Standard(s)
UL 486A-486B
Voltage - Maximum
35000 V
Certification - CSA Approved
Yes
Trade Name
HYPLUGâ„¢
Pin Type
Solid
RoHS Compliant
Yes
Maximum Conductors
2
Maximum Operating Temperature
194Â Degrees F
CAD Available
Yes

Description

Compression Pin Terminal, Connection Orientation Offset, Die Code 298, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 3/0 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, Insulation Material Rubber, Maximum Voltage 35 kV, Number of Crimps 2, Pin Diameter 0.375 in, Pin Equivalent Wire Size 1/0 AWG, Pin Length 1.22 in, Contact Finish Tin, Contact Material Aluminum, Barrel Diameter 0.86 in, Barrel Length 1.11 in, Color Code White
