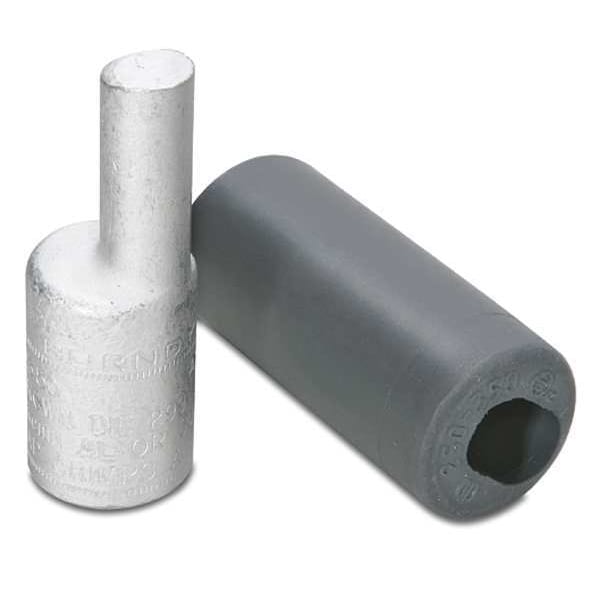

Offset Adapter, 400 kcmil Max, Standard Barrel, Aluminum, Pink
Mfr # AYPO400
Zoro # G4665446
product price:Â
$
54.99
/ea
Key Features
For Wire Size
400 kcmil
For Conductor Material
Aluminum, Copper
Material
Aluminum
Barrel Size
Standard
Die Code
300
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- AYPO400
- Zoro #
- G4665446
- UPC #
- 781810556436
- Country of Origin
- United States
Dimensions
- For Wire Size
- 400 kcmil
- Barrel Size
- Standard
- Min. Wire Size
- 4/0 AWG
- Max. Wire Size
- 400 kcmil
- Width
- 1.31 in
- Diameter
- 5/8 in
- Length
- 3.43 in
- Length (Straight Wireway)
- 3.43 in
- Pin Diameter
- 0.625 in
- Barrel Length
- 1.07 in
- Pin Length
- 1.6 in
- Overall Length
- 3.43 in
- For Stranded Copper Wire Size - Minimum
- 400 kcmil
- Pin Equivalent Wire Size
- 300 kcmil
- For Stranded Aluminum Wire Size - Maximum
- 400 kcmil
- Barrel Diameter
- 1.31 in
- For Stranded Copper Wire Size - Maximum
- 400 kcmil
- Strip Length
- 1 1/16 in
- Conductor - AL Str Size
- 400 KCMIL
- Dimension - B Length inch
- 1.07 in
- Dimension - B Length fraction
- 1-1/16 in
- Conductor - Copper Str Size Range
- 400 kcmil
- Conductor - Copper Str Size
- 400 KCMIL
- Dimension - B Outside Diameter inch
- 0.63 in
- Equivalent Pin Size
- 300 kcmil
- Conductor Size
- 400 KCMIL
- Dimension - L Length Overall mm
- 87 mm
- Dimension - Length Overall inch
- 3.43 in
- Conductor - Copper Flex I Size
- 400 KCMIL
- Dimension - P inch
- 1.60 in
- Conductor - Copper Str Compact Size
- 400 KCMIL
- Dimension - Strip Length inch
- 1-1/8 in
- Conductor - AL Str Size Range
- 400 kcmil
- Dimension - A Outside Diameter inch
- 1.31 in
- Maximum Wire Size
- 400 kcmil
- For Minimum Wire Size - Stranded
- 400 kcmil
- For Maximum Wire Size - Stranded
- 400 kcmil
- Maximum Run Wire Size
- 400 kcmil
- Minimum Run Wire Size
- 4/0 AWG
- Wire Rope Length
- 3.43 in
Description
Compression Pin Terminal, Connection Orientation Offset, Die Code 300, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 400 kcmil, For Stranded Copper Wire Size - Maximum 400 kcmil, Insulation Material Rubber, Maximum Voltage 35 kV, Number of Crimps 4, Pin Diameter 0.625 in, Pin Equivalent Wire Size 300 kcmil, Pin Length 1.6 in, Contact Finish Tin, Contact Material Aluminum, Barrel Diameter 1.31 in, Barrel Length 1.07 in, Color Code Pink
