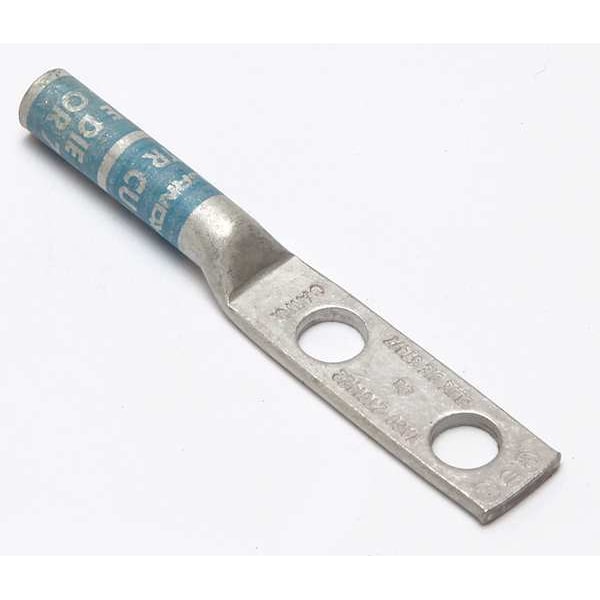

Two-Hole Compression Lug, 6 AWG Max, 1/4 in Stud, Long Barrel, Copper, Blue
- Mfr # YA6C2TC14E2
- Zoro # G4706082
CAD Available
product price:Â
$
7.59
/ea
Key Features
CAD Drawing
For Wire Size
6 AWG
For Conductor Material
Copper
For Stud Size
1/4 in
Material
Copper
Barrel Size
Long
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- YA6C2TC14E2
- Zoro #
- G4706082
- UPC #
- 781810555774
- Country of Origin
- United States
Dimensions
- For Wire Size
- 6 AWG
- For Stud Size
- 1/4 in
- Barrel Size
- Long
- Tongue Width
- 0.45 in
- Width
- 0.45"
- Cable Size
- 6 AWG
- Barrel Length
- Long
- Length
- 2.78"
- Overall Length
- 2.78 in
- Overall Width
- 0.46 in
- Length (Straight Wireway)
- 2.78 in
- Barrel Outside Diameter
- 0.29 in
- For Stranded Copper Wire Size - Maximum
- 6 AWG
- Hole Size
- 0.27 in
- Tongue Length
- 0.65 in
- Strip Length
- 1 3/16 in
- Tongue Thickness
- 0.08 in
- For Stranded Copper Wire Size - Minimum
- 6 AWG
- Conductor Size
- 6 AWG
- Dimension - Hole Size inch
- 0.27
- Dimension - Outside Diameter inch
- 0.29
- Conductor - Copper Str Navy Size
- 30 (19) Navy
- Dimension - B Length inch
- 1.12
- Dimension - Bolt Size fraction
- 2023-01-04
- Dimension - N inch
- 0.31
- Conductor - Copper Str Size
- 6 AWG
- Conductor - Copper Str Navy Size Range
- 30 (19) Navy
- Dimension - Strip Length inch
- 1-3/16 in
- Dimension - Stud Size fraction
- 2023-01-04
- Dimension - Stud Size inch
- 1/4 in
- Dimension - Pad Width inch
- 0.45
- Conductor - Copper Str Size Range
- 6 AWG
- Dimension - L Length Overall mm
- 71
- Dimension - Bolt Size inch
- 0.25
- Dimension - Length Overall inch
- 2.78
- Dimension - Bolt Hole Size inch
- 0.27
- Dimension - Z inch
- 0.34 in
- Conductor - Copper Solid Size
- 6 AWG
- Dimension - Hole Size mm
- 7
- Dimension - Hole Size fraction
- 2023-01-04
- Wire Rope Length
- 2.78 in
Description
Two-Hole Lug Compression Connector, Barrel Size Long, Color Code Blue, Die Code 374, 7, Tongue Angle Straight, Tongue Width 0.45 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole No, Hole Center to Center 0.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
