Details

MFR #: AYPO500
Zoro #: G4685457
UPC #: 781810556375
Country of Origin: United States
Item: Offset Adapter
For Conductor Material: Aluminum, Copper
Material: Aluminum
Die Code: 300
Color Code: Pink
Standards: CSA Approved; UL468A-486B; UL Listed
For Use With: Hytools Dieless Tools Hydraulic Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V
Wire Type: Copper
Application: For Aluminum and Copper Conductors, Mechanical Connectors in Molded Case Circuit Breakers, Panel Board Equipment and Meter Sockets
Color: Pink
Max. Temp.: 194 Degrees F
Insulation Type: Rubber
Wire Range: 500 kcmil
Max. Voltage: 35 kv
Insulation Material: Rubber
Connection Material: Aluminum
Contact Material: Aluminum
Maximum Voltage: 35 kV
Number of Crimps: 4
Compatible Installation Tool Model Number: Hytools Dieless Tools Hydraulic Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V
Contact Finish: Tin
Connection Orientation: Offset
Insulated: Yes
Terminal Type: Pin
Type: Pin Adapter
Finish: Tin Plated
Voltage - Maximum: 35000 V
Voltage Rating: 35 kV
Insulation: Y
Physical Attribute - Number of Crimps Required: 4
Plating Type: Tin
Plated: Yes
Industry Standard(s): UL 486A-486B
Finish Type: Tin-Plated
Certification - CSA Approved: Yes
Trade Name: HYPLUGâ„¢
Conductor Type: CODE/FLEX
Pin Type: Solid
Temperature Rating: 194
Die Index: 300
UL Listed: Yes
Conductor - Material: ALUMINUM / COPPER
RoHS Compliant: Yes
Maximum Operating Temperature: 194Ã‚ Degrees F
CAD Available: Yes

Description

Compression Pin Terminal, Connection Orientation Offset, Die Code 300, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 500 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, Insulation Material Rubber, Maximum Voltage 35 kV, Number of Crimps 4, Pin Diameter 0.672 in, Pin Equivalent Wire Size 350 kcmil, Pin Length 1.6 in, Contact Finish Tin, Contact Material Aluminum, Barrel Diameter 1.31 in, Barrel Length 1.07 in, Color Code Pink

Dimensions

For Wire Size: 500 kcmil
Barrel Size: Standard
Min. Wire Size: 4/0 AWG
Width: 1.31 in
Max. Wire Size: 500 kcmil
Length: 3.43 in
Diameter: 43/64 in
Length (Straight Wireway): 3.43 in
Barrel Diameter: 1.31 in
For Stranded Aluminum Wire Size - Maximum: 500 kcmil
Overall Length: 3.43 in
For Stranded Copper Wire Size - Minimum: 500 kcmil
Pin Length: 1.6 in
Strip Length: 1 1/16 in
Barrel Length: 1.07 in
Pin Equivalent Wire Size: 350 kcmil
Pin Diameter: 0.672 in
For Stranded Copper Wire Size - Maximum: 500 kcmil
Conductor - Copper Str Size: 500 KCMIL
Dimension - L Length Overall mm: 87 mm
Conductor - Copper Flex I Size: 500 KCMIL
Dimension - Strip Length inch: 1-1/8 in
Dimension - P inch: 1.60 in
Conductor - Copper Flex I Size Range: 500 kcmil
Dimension - B Outside Diameter inch: 0.68 in
Dimension - A Outside Diameter inch: 1.31 in
Conductor - Copper DLO Size Range: 373 kcmil
Equivalent Pin Size: 350 kcmil
Conductor - Copper Str Size Range: 500 kcmil
Dimension - B Length fraction: 1-1/16 in
Conductor Size: 500 KCMIL
Conductor - Copper Str Compact Size: 500 KCMIL
Conductor - AL Str Size: 500 KCMIL
Dimension - B Length inch: 1.07 in
Dimension - Length Overall inch: 3.43 in
Conductor - AL Str Size Range: 500 kcmil
Conductor - Copper DLO Size: 373 KCMIL
For Minimum Wire Size - Stranded: 500 kcmil
For Maximum Wire Size - Stranded: 500 kcmil
Maximum Wire Size: 500 kcmil
Minimum Run Wire Size: 4/0 AWG
Maximum Run Wire Size: 500 kcmil
Wire Rope Length: 3.43 in

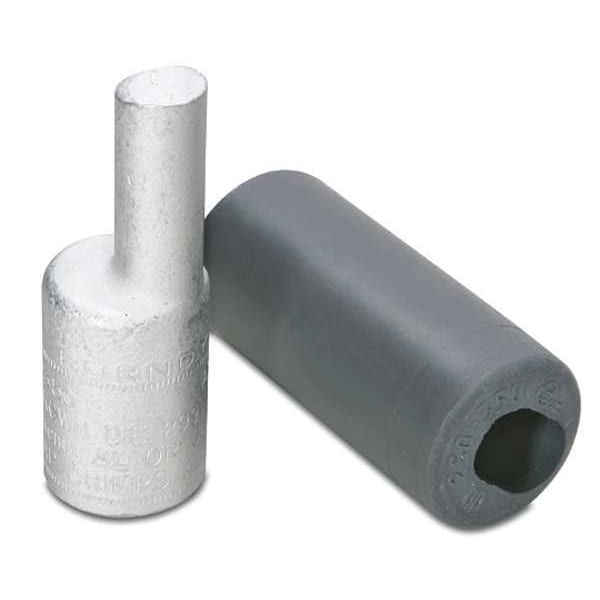

Offset Adapter, 500 kcmil Max, Standard Barrel, Aluminum, Pink
