  11. One-Hole Compression Lug, 1 AWG Max, 1/2 in Stud, Long Barrel, Copper, None

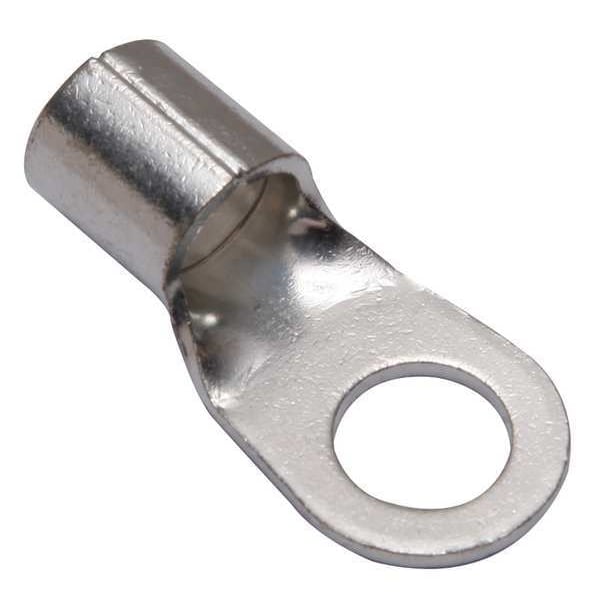

Burndy One-Hole Compression Lug, 1 AWG Max, 1/2 in Stud, Long Barrel, Copper, None YAD1CM12E12 - main

One-Hole Compression Lug, 1 AWG Max, 1/2 in Stud, Long Barrel, Copper, None

  • Mfr # YAD1CM12E12

  • Zoro # G6108575

product price: $5.89
/ea

Key Features

Cable Size
1 AWG
Connector Type
YAD
Width
0.87"
Material
Copper
Length
1.85"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD1CM12E12
Zoro #
G6108575
UPC #
781810668092
Country of Origin
Taiwan, Province of China

Dimensions

Cable Size
1 AWG
Width
0.87"
Length
1.85"
Tongue Width - Wire Connector
0.87 in
Overall Length
1.86 in
Barrel Length
0.63 in
Minimum Wire Size
1 AWG
Barrel Outside Diameter
0.57 in
Strip Length
3/4 in
Maximum Wire Size
1 AWG
Tongue Width
0.87 in
Tongue Thickness
0.07 in
Hole Diameter
0.51 in
For Wire Size
1 AWG
Tongue Length
0.23 in
Barrel Size
Long
Dimension - B Length inch
0.63 in
Dimension - Outside Diameter inch
0.57 in
Conductor - Copper Str Size
1 AWG
Dimension - Hole Size inch
0.51 in
Conductor Size
1 AWG
Dimension - Strip Length inch
44989
Dimension - Bolt Size fraction
1 to 2
Dimension - L Length Overall mm
47 mm
Dimension - Pad Width inch
0.87 in
Dimension - Length Overall inch
1.86 in
Dimension - Stud Size inch
1 to 2
For Stud Size
1/2 in

Details

Connector Type
YAD
Material
Copper
Color Code
None
Tongue Style
Ring
Max. Voltage
600 V
Insulation Color
Bare
Peep Hole
No
Plate Material
Tin
Insulation Type
Non-Insulated
Item
One-Hole Compression Lug
Max. Temp.
302 Degrees F
Hole Center to End
1.420"
Wire Range
1 AWG
Seam
Brazed
Die Code
1019
Connection Material
Tin Plater Copper
Standards
UL 467
Maximum Voltage
600 V
Contact Material
Copper
Insulation Material
None
Contact Finish
Tin
Terminal Shape
Ring Tongue
Hole Spacing
0.79 in
Maximum Operating Temperature
302 Degrees F
Minimum Operating Temperature
302 Degrees F
Compatible with Product Type
Code, Flex Cable
RoHS Compliant
Yes
Barrel Style
Brazed
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Seam Style
Brazed
Termination Style
Crimp
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Insulation Coverage
None
Feature - Barrel Type
Long
Trade Name
HYLUGâ„¢
Plated
Y
Plating Type
Tin
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Type
Ring Tongue
Item Type
3B
Voltage - Maximum
600 V
Industry Standard(s)
UL467
Conductor Type
CU C Str-SizeCU C Flex-Size
Physical Attribute - Tongue Type
Ring
For Conductor Material
Copper
Inspection Hole
No

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 1 AWG, Maximum Wire Size 1 AWG, Termination Style Crimp, Tongue Width 0.87 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.63 in, Barrel Outside Diameter 0.57 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221, Compatible with Product Type Code, Flex Cable
