Shop BURNDY

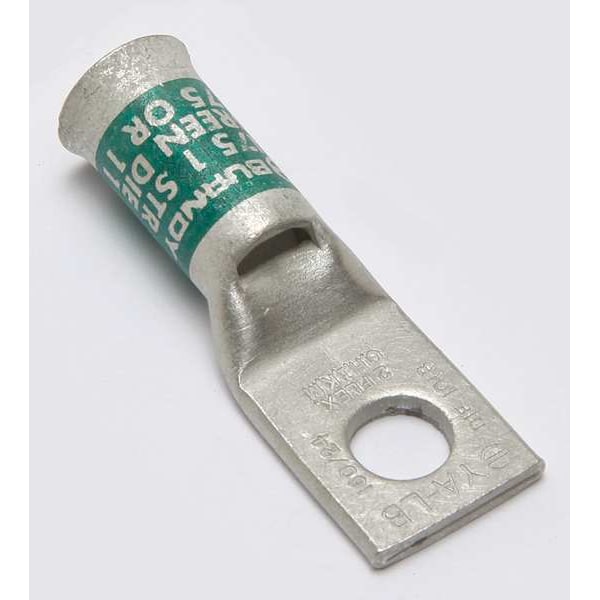

One-Hole Compression Lug, 1 AWG Max, 5/16 in Stud, Short Barrel, Copper, Green

  • Mfr # YA1CLB

  • Zoro # G4650527

product price:  $13.55
/ea

Key Features

For Wire Size
1 AWG
For Conductor Material
Copper
For Stud Size
5/16 in
Material
Copper
Barrel Size
Short
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
YA1CLB
Zoro #
G4650527
UPC #
781810555958
Country of Origin
United States

Dimensions

For Wire Size
1 AWG
For Stud Size
5/16 in
Barrel Size
Short
Tongue Width
0.68 in
Width
0.68"
Length
1.97"
Barrel Length
Short
Cable Size
2 AWG
Length (Straight Wireway)
1.97 in
Conductor - Copper Str Navy Size
75 (37) Navy
Conductor - Copper Str Size
1 AWG
Conductor - Copper Str Size Range
1 AWG
Conductor - Copper DLO Size
2 (150/#24) DLO
Dimension - Hole Size fraction
2023-05-16
Dimension - Length Overall inch
1.97 in
Conductor - Copper Solid Size Range
1 AWG
Conductor - Copper Flex K Size
2 AWG
Dimension - L Length Overall mm
50 mm
Conductor - Copper Flex K Size Range
2 AWG
Dimension - Hole Size inch
0.331 in
Conductor - Copper Flex M Size
2 AWG
Dimension - Stud Size fraction
2023-05-16
Dimension - Bolt Hole Size inch
0.33 in
Conductor - Copper Flex M Size Range
2 AWG
Conductor - Copper DLO Size Range
2 (150/#24) DLO
Dimension - Outside Diameter inch
0.46 in
Conductor Size
1 AWG
Conductor - Copper Flex H Size
2 AWG
Conductor - Copper Solid Size
1 AWG
Conductor - Copper Flex I Size Range
2 AWG
Conductor - Copper Flex G Size
2 AWG
Conductor - Copper Flex G Size Range
2 AWG
Dimension - Bolt Size inch
0.3125
Dimension - Z inch
0.36 in
Dimension - Strip Length inch
15/16
Dimension - B Length fraction
7/8 in
Dimension - Bolt Size fraction
2023-05-16
Dimension - Hole Size mm
8 mm
Dimension - N inch
0.34 in
Conductor - Copper Flex H Size Range
2 AWG
Conductor - Copper Flex I Size
2 AWG
Dimension - Pad Width inch
0.68 in
Dimension - B Length inch
0.87 in
For Stranded Copper Wire Size - Maximum
1 AWG

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Inspection Hole
Yes
Die Code
1,018
Color Code
Green
Standards
CSA Certified, UL 486A-486B, UL Listed
Connector Type
Short Barrel
Plate Material
Electro Tin
Hole Center to End
0.34 in
Peep Hole
Yes
Tongue Style
Standard
Application
For Flex Conductor
Plated
Y
Die Index
11
Type
Standard Belled Barrel, Tin Plated
Industry Standard(s)
UL468A-468B
Feature - Barrel Style
Belled
Voltage Rating
35 kV
UL Listed
Yes
Physical Attribute - Number of Holes
1
Voltage - Maximum
35000
Conductor Type
CODE
Physical Attribute - Tongue Type
Standard
Rating - Minimum Voltage
600
Finish Type
Tin-Plated
Certification - CSA Approved
Yes
Conductor - Material
Copper
Feature - Barrel Type
Standard
Physical Attribute - Tongue Angle
Straight
Rating - KVA
35 kV
Plating Type
Electro-Tin plated
Trade Name
HYLUGâ„¢
Number of Holes
1
Maximum Voltage
35 kV
Contact Finish
Tin
For Wire Type
Solid, Stranded

Description

Compression Lug, Barrel Size Standard, Color Code Green, Die Code 1,018, For Stud Size 5/16 in, For Stranded Copper Wire Size - Maximum 1 AWG, Hole Center to Center Not Applicable, Material Copper, Max. Operating Temp. 194 Degrees F, Maximum Voltage 35 kV, Standards CSA Certified, UL 486A-486B, UL Listed, Connector Type Belled Straight Barrel, Contact Finish Tin, For Wire Size 1 AWG, 2 AWG, For Wire Type Solid, Stranded
