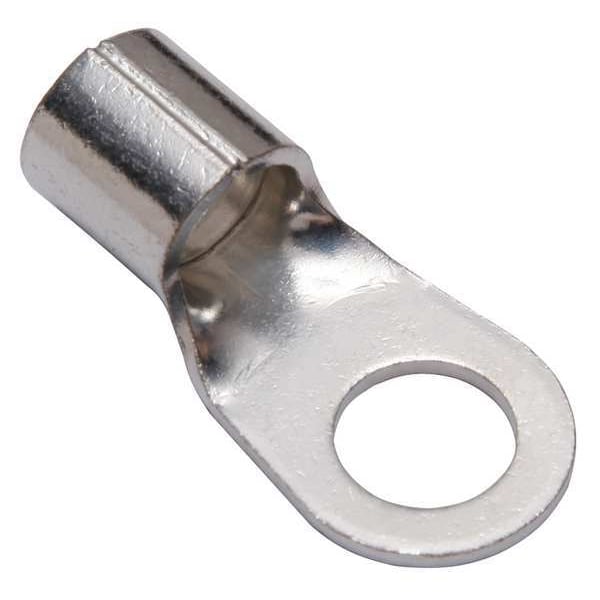

Burndy One-Hole Compression Lug, 1/0 AWG Max, 1/2 in Stud, Long Barrel, Copper, None YAD25M12E12 - main

One-Hole Compression Lug, 1/0 AWG Max, 1/2 in Stud, Long Barrel, Copper, None

  • Mfr # YAD25M12E12

  • Zoro # G6098942

product price: $6.19
/ea

Key Features

Cable Size
1/0 AWG
Connector Type
YAD
Width
0.87"
Material
Copper
Length
1.85"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD25M12E12
Zoro #
G6098942
UPC #
781810668153
Country of Origin
Taiwan, Province of China

Dimensions

Cable Size
1/0 AWG
Width
0.87"
Length
1.85"
Barrel Length
0.63 in
Overall Length
1.86 in
Tongue Width - Wire Connector
0.87 in
Strip Length
3/4 in
Minimum Wire Size
1/0 AWG
For Wire Size
1/0 AWG
Tongue Length
0.23 in
Hole Diameter
0.51 in
Barrel Outside Diameter
0.57 in
Tongue Width
0.87 in
Tongue Thickness
0.07 in
Maximum Wire Size
1/0 AWG
Barrel Size
Long
Conductor - Copper Str Size
1/0 AWG
Dimension - Strip Length inch
44989
Dimension - Pad Width inch
0.87 in
Conductor Size
1/0 AWG
Dimension - B Length inch
0.63 in
Dimension - Hole Size inch
0.51 in
Dimension - Outside Diameter inch
0.57 in
Dimension - Stud Size inch
1 to 2
Dimension - L Length Overall mm
47 mm
Dimension - Bolt Size fraction
1 to 2
Dimension - Length Overall inch
1.86 in
For Stud Size
1/2 in

Details

Connector Type
YAD
Material
Copper
Color Code
None
Item
One-Hole Compression Lug
Max. Temp.
302 Degrees F
Hole Center to End
1.420"
Seam
Brazed
Peep Hole
No
Connection Material
Tin Plater Copper
Max. Voltage
600 V
Insulation Color
Bare
Wire Range
1/0 AWG
Insulation Type
Non-Insulated
Die Code
1019
Tongue Style
Ring
Plate Material
Tin
Standards
UL 467
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Contact Finish
Tin
Maximum Operating Temperature
302 Degrees F
Minimum Operating Temperature
302 Degrees F
Compatible with Product Type
Code, Flex Cable
Insulation Material
None
Maximum Voltage
600 V
Contact Material
Copper
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Terminal Shape
Ring Tongue
Termination Style
Crimp
Seam Style
Brazed
Insulation Coverage
None
RoHS Compliant
Yes
Barrel Style
Brazed
Hole Spacing
0.79 in
Plating Type
Tin
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Conductor Type
CU C Str-SizeCU C Flex-Size
Voltage - Maximum
600 V
Industry Standard(s)
UL467
Physical Attribute - Tongue Type
Ring
Item Type
3B
Type
Ring Tongue
Trade Name
HYLUGâ„¢
Plated
Y
Feature - Barrel Type
Long
Inspection Hole
No
For Conductor Material
Copper

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 1/0 AWG, Maximum Wire Size 1/0 AWG, Termination Style Crimp, Tongue Width 0.87 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.63 in, Barrel Outside Diameter 0.57 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221, Compatible with Product Type Code, Flex Cable
