  6. One-Hole Compression Lug, 3/0 AWG Max, 5/8 in Stud, Long Barrel, Copper, None

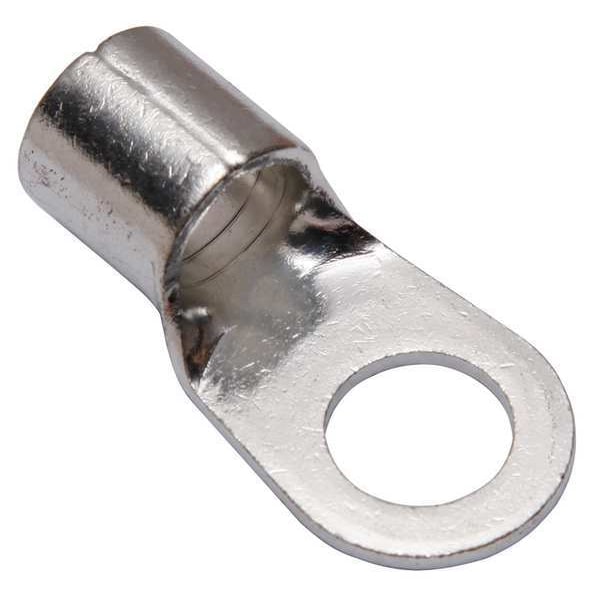

Burndy One-Hole Compression Lug, 3/0 AWG Max, 5/8 in Stud, Long Barrel, Copper, None YAD27M16E58 - main

One-Hole Compression Lug, 3/0 AWG Max, 5/8 in Stud, Long Barrel, Copper, None

  • Mfr # YAD27M16E58

  • Zoro # G6074065

product price:  $16.19
/ea

Key Features

For Wire Size
3/0 AWG
For Conductor Material
Copper
For Stud Size
5/8 in
Material
Copper
Barrel Size
Long
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
YAD27M16E58
Zoro #
G6074065
UPC #
781810668283
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
3/0 AWG
For Stud Size
5/8 in
Barrel Size
Long
Tongue Width
1.14 in
Cable Size
3/0 AWG
Overall Length
2.37 in
Tongue Width - Wire Connector
1.1 in
Barrel Length
0.79 in
Length
2.28"
Width
1.1"
Maximum Wire Size
3/0 AWG
Hole Diameter
0.67 in
Tongue Thickness
0.1 in
Minimum Wire Size
3/0 AWG
Strip Length
7/8 in
Tongue Length
1.58 in
Barrel Outside Diameter
0.79 in
Conductor Size
3/0 AWG
Dimension - Length Overall inch
2.37 in
Dimension - Strip Length inch
45115
Dimension - Stud Size inch
45054
Conductor - Copper Str Size
3/0 AWG
Dimension - L Length Overall mm
58 mm
Dimension - Pad Width inch
1.14 in
Dimension - Hole Size inch
0.67 in
Dimension - Outside Diameter inch
0.79 in
Dimension - B Length inch
0.79 in
Dimension - Bolt Size fraction
2023-05-08

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Inspection Hole
No
Die Code
1023
Color Code
None
Standards
UL 467
Peep Hole
No
Max. Temp.
302 Degrees F
Max. Voltage
600 V
Hole Center to End
1.730"
Tongue Style
Ring
Connection Material
Tin Plater Copper
Plate Material
Tin
Connector Type
YAD
Wire Range
3/0 AWG
Seam
Brazed
Insulation Color
Bare
Insulation Type
Non-Insulated
Terminal Shape
Ring Tongue
Compatible with Product Type
Code, Flex Cable
Hole Spacing
0.94 in
Insulation Coverage
None
Barrel Style
Brazed
Minimum Operating Temperature
302 Degrees F
Maximum Voltage
600 V
Contact Finish
Tin
Contact Material
Copper
Maximum Operating Temperature
302 Degrees F
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Seam Style
Brazed
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
RoHS Compliant
Yes
Insulation Material
None
Termination Style
Crimp
Industry Standard(s)
UL467
Plating Type
Tin
Plated
Y
Conductor Type
CU C Str-SizeCU C Flex-Size
Voltage - Maximum
600 V
Physical Attribute - Tongue Type
Ring
Type
Ring Tongue
Item Type
3B
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Trade Name
HYLUGâ„¢
Feature - Barrel Type
Long

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 3/0 AWG, Maximum Wire Size 3/0 AWG, Termination Style Crimp, Tongue Width 1.14 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.79 in, Barrel Outside Diameter 0.79 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221
