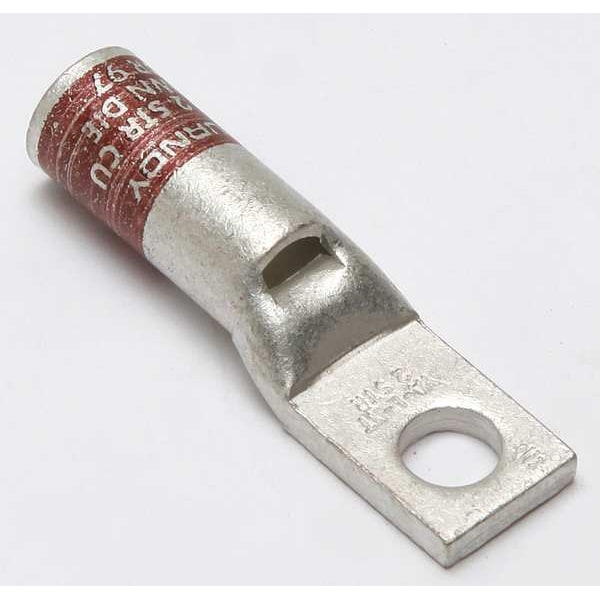

One-Hole Compression Lug, 2 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Brown
Mfr # YA2CLNT14
Zoro # G4655497
product price: $9.99
/eaKey Features
For Wire Size
2 AWG
For Conductor Material
Aluminum, Copper
For Stud Size
1/4 in
Material
Copper
Barrel Size
Standard
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YA2CLNT14
Zoro #
G4655497
UPC #
781810559925
Country of Origin
United States
Dimensions
For Wire Size
2 AWG
For Stud Size
1/4 in
Barrel Size
Standard
Tongue Width
0.50 in
Width
0.48"
Length
1.8"
Cable Size
2 AWG
Barrel Length
Short
Overall Length
1.8 in
Overall Width
0.5 in
Length (Straight Wireway)
1.8 in
For Stranded Aluminum Wire Size - Maximum
2 AWG
Tongue Length
0.56 in
Tongue Thickness
0.11 in
For Stranded Copper Wire Size - Minimum
2 AWG
Hole Size
0.27 in
For Stranded Copper Wire Size - Maximum
2 AWG
Strip Length
15/16 in
Barrel Outside Diameter
0.42 in
Dimension - B Length inch
0.88 in
Conductor - AL Str Size
2 AWG
Conductor Size
2 AWG
Conductor - Copper Str Size
2 AWG
Dimension - Hole Size inch
0.27
Conductor - Copper Str Navy Size Range
60 (37) Navy
Dimension - Outside Diameter inch
0.42 in
Dimension - B Length fraction
7/8 in
Dimension - Stud Size inch
44930
Dimension - N inch
0.25 in
Dimension - Bolt Size inch
0.25
Dimension - Z inch
0.31 in
Dimension - L Length Overall mm
46 mm
Conductor - Copper Str Navy Size
60 (37) Navy
Dimension - Bolt Hole Size inch
0.27 in
Conductor - AL Str Size Range
2 AWG
Dimension - Bolt Size fraction
2023-01-04
Dimension - Pad Width inch
0.50 in
Dimension - Hole Size mm
6.9 mm
Dimension - Hole Size fraction
2023-01-04
Dimension - Length Overall inch
1.80 in
Dimension - Strip Length inch
15/16
Dimension - D inch
0.56 in
Dimension - Stud Size fraction
2023-01-04
Conductor - Copper Str Size Range
2 AWG
Description
Compression Lug, Barrel Size Standard, Color Code Brown, Die Code 10, Tongue Angle Straight, Tongue Width 0.5 in, For Conductor Material Aluminum, Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
