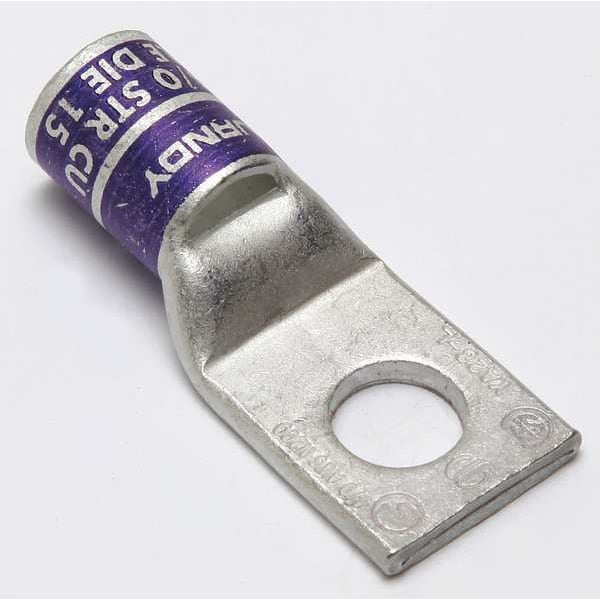

One-Hole Compression Lug, 4/0 AWG Max, 3/8 in Stud, Standard Barrel, Copper, Purple
- Mfr # YA28LNT38
- Zoro # G4671064
CAD Available
product price:Â
$
17.79
/ea
Key Features
CAD Drawing
For Wire Size
4/0 AWG
For Conductor Material
Copper
For Stud Size
3/8 in
Material
Copper
Barrel Size
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- YA28LNT38
- Zoro #
- G4671064
- UPC #
- 781810559932
- Country of Origin
- United States
Dimensions
- For Wire Size
- 4/0 AWG
- For Stud Size
- 3/8 in
- Barrel Size
- Standard
- Tongue Width
- 0.76 in
- Barrel Length
- Short
- Width
- 0.76 in
- Length
- 2.67"
- Cable Size
- 4/0 AWG
- Overall Length
- 2.67 in
- Overall Width
- 0.76 in
- Length (Straight Wireway)
- 2.67 in
- Strip Length
- 1 1/8 in
- Barrel Outside Diameter
- 0.69 in
- Hole Size
- 0.39 in
- Tongue Thickness
- 0.14 in
- For Stranded Copper Wire Size - Maximum
- 4/0 AWG
- For Stranded Copper Wire Size - Minimum
- 4/0 AWG
- Tongue Length
- 1.14 in
- Conductor - Copper Str Navy Size Range
- 200 (61) Navy
- Dimension - D inch
- 1.14 in
- Conductor Size
- 4/0 AWG
- Dimension - B Length inch
- 0.88 in
- Conductor - Copper Str Size Range
- 4/0 AWG
- Dimension - Hole Size mm
- 10.4 mm
- Dimension - Hole Size fraction
- 2023-03-08
- Dimension - Length Overall inch
- 2.67 in
- Conductor - Copper Str Size
- 4/0 AWG
- Dimension - N inch
- 0.41 in
- Dimension - Stud Size inch
- 44993
- Dimension - Strip Length inch
- 1-1/8 in
- Dimension - Bolt Size fraction
- 44993
- Dimension - B Length fraction
- 7/8 in
- Dimension - Z inch
- 0.73 in
- Dimension - L Length Overall mm
- 68 mm
- Dimension - Bolt Size inch
- 0.38
- Dimension - Pad Width inch
- 0.76 in
- Conductor - Copper Str Navy Size
- 200 (61) Navy
- Dimension - Hole Size inch
- 0.41
- Dimension - Stud Size fraction
- 44993
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - Outside Diameter inch
- 0.69 in
- Wire Rope Length
- 2.67 in
Description
Compression Lug, Barrel Size Standard, Color Code Purple, Die Code 15, Tongue Angle Straight, Tongue Width 0.76 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 4/0 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
