  11. One-Hole Compression Lug, 2 AWG Max, 3/8 in Stud, Long Barrel, Copper, None, 5 PK

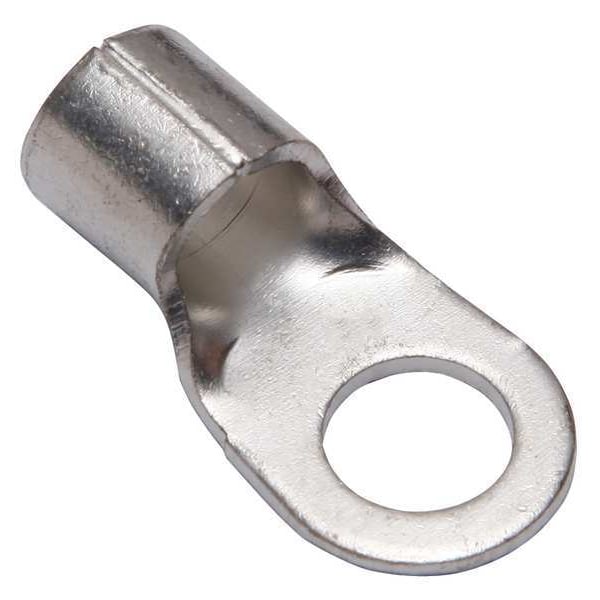

Burndy One-Hole Compression Lug, 2 AWG Max, 3/8 in Stud, Long Barrel, Copper, None, 5 PK YAD2CM10E38 - main

CAD Drawings

Download CAD Files

One-Hole Compression Lug, 2 AWG Max, 3/8 in Stud, Long Barrel, Copper, None, 5 PK

  • Mfr # YAD2CM10E38

  • Zoro # G6090122

CAD Available
product price: $12.95
/pk 5, $2.59/ea

Key Features

CAD Drawing
Cable Size
2 AWG
Connector Type
YAD
Width
0.71"
Material
Copper
Length
1.42"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD2CM10E38
Zoro #
G6090122
UPC #
781810668375
Country of Origin
Taiwan, Province of China

Dimensions

Cable Size
2 AWG
Width
0.71"
Length
1.42"
Tongue Width - Wire Connector
0.71 in
Overall Length
1.42 in
Barrel Length
0.47 in
Tongue Thickness
0.06 in
Barrel Size
Long
For Wire Size
2 AWG
Maximum Wire Size
2 AWG
Strip Length
1/2 in
Tongue Width
0.71 in
Hole Diameter
0.41 in
Barrel Outside Diameter
0.48 in
Tongue Length
0.95 in
Minimum Wire Size
2 AWG
Dimension - B Length inch
0.47 in
Dimension - Strip Length inch
17/32
Dimension - Pad Width inch
0.71 in
Conductor - Copper Str Size
2 AWG
Dimension - Outside Diameter inch
0.48 in
Dimension - Stud Size inch
44993
Dimension - Hole Size inch
0.41 in
Dimension - Length Overall inch
1.42 in
Dimension - Bolt Size fraction
2023-03-08
Dimension - L Length Overall mm
36 mm
Conductor Size
2 AWG
For Stud Size
3/8 in

Details

Connector Type
YAD
Material
Copper
Color Code
None
Peep Hole
No
Hole Center to End
1.060"
Max. Voltage
600 V
Max. Temp.
302 Degrees F
Seam
Brazed
Connection Material
Tin Plater Copper
Wire Range
2 AWG
Plate Material
Tin
Item
One-Hole Compression Lug
Insulation Type
Non-Insulated
Die Code
1018
Tongue Style
Ring
Insulation Color
Bare
Standards
UL 467
Terminal Shape
Ring Tongue
Insulation Coverage
None
Seam Style
Brazed
Contact Finish
Tin
Barrel Style
Brazed
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Insulation Material
None
Minimum Operating Temperature
302 Degrees F
Hole Spacing
0.59 in
Contact Material
Copper
Maximum Operating Temperature
302 Degrees F
Compatible with Product Type
Code, Flex Cable
Maximum Voltage
600 V
Termination Style
Crimp
RoHS Compliant
Yes
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Type
Ring Tongue
Physical Attribute - Tongue Type
Ring
Feature - Barrel Type
Long
Conductor Type
CU C Str-SizeCU C Flex-Size
Voltage - Maximum
600 V
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Item Type
3B
Trade Name
HYLUGâ„¢
Industry Standard(s)
UL467
Plated
Y
Plating Type
Tin
Inspection Hole
No
For Conductor Material
Copper
CAD Available
Yes

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 2 AWG, Maximum Wire Size 2 AWG, Termination Style Crimp, Tongue Width 0.71 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.47 in, Barrel Outside Diameter 0.48 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221
