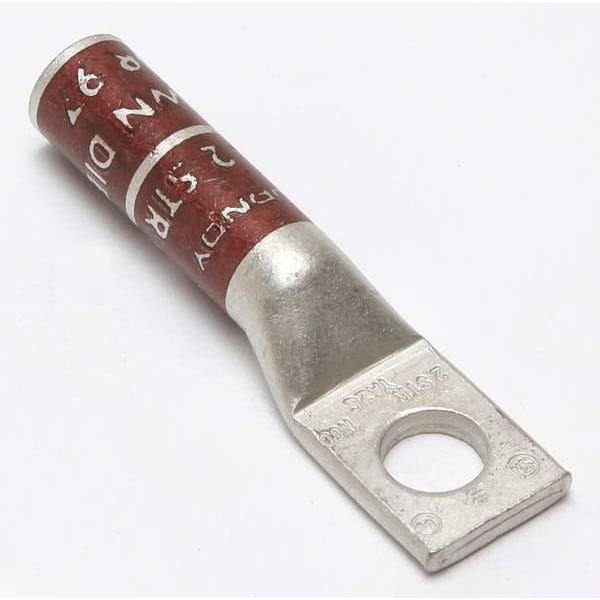

One-Hole Compression Lug, 2 AWG Max, 5/16 in Stud, Long Barrel, Copper, Brown
Mfr # YA2C
Zoro # G4682851
CAD Available
product price: $8.45
/eaKey Features
CAD Drawing
For Wire Size
2 AWG
For Conductor Material
Copper
For Stud Size
5/16 in
Material
Copper
Barrel Size
Long
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YA2C
Zoro #
G4682851
UPC #
781810559734
Country of Origin
United States
Dimensions
For Wire Size
2 AWG
For Stud Size
5/16 in
Barrel Size
Long
Tongue Width
0.60 in
Cable Size
2 AWG
Length
2.29"
Barrel Length
Long
Width
0.6"
Overall Width
0.61 in
Overall Length
2.29 in
Length (Straight Wireway)
2.29 in
Tongue Thickness
0.11 in
Barrel Outside Diameter
0.42 in
Hole Size
0.33 in
Tongue Length
0.7 in
For Stranded Copper Wire Size - Minimum
2 AWG
Strip Length
1 5/16 in
For Stranded Copper Wire Size - Maximum
2 AWG
Dimension - Length Overall inch
2.29 in
Dimension - D inch
0.59 in
Dimension - Hole Size mm
8 mm
Dimension - Hole Size inch
0.33 in
Dimension - Z inch
0.36 in
Conductor - Copper Str Size
2 AWG
Dimension - Strip Length inch
42374
Conductor Size
2 AWG
Dimension - Bolt Hole Size inch
0.33 in
Dimension - Outside Diameter inch
0.42 in
Dimension - Bolt Size inch
0.3125
Dimension - B Length inch
1.25 in
Conductor - Copper Str Size Range
2 AWG
Dimension - L Length Overall mm
58 mm
Dimension - N inch
0.34 in
Dimension - Hole Size fraction
2023-05-16
Dimension - Stud Size fraction
2023-05-16
Dimension - Pad Width inch
0.60 in
Dimension - Bolt Size fraction
2023-05-16
Dimension - Stud Size inch
45062
Description
Compression Lug, Barrel Size Long, Color Code Brown, Die Code 10, Tongue Angle Straight, Tongue Width 0.6 in, For Conductor Material Copper, For Stud Size 5/16 in, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
