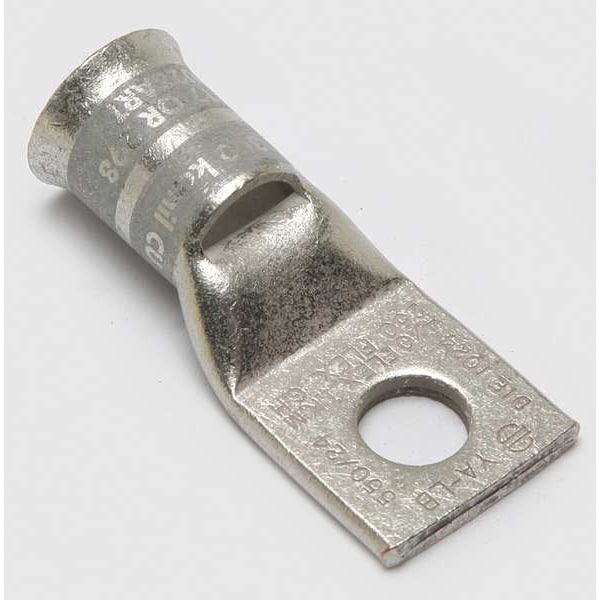

One-Hole Compression Lug, 250 kcmil, 300 kcmil, 4/0 AWG Max, 1/2 in Stud, Short Barrel, Copper
- Mfr # YA30LB
- Zoro # G4681765
product price:Â
$
23.35
/ea
Key Features
For Wire Size
250 kcmil, 300 kcmil, 4/0 AWG
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Short
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- YA30LB
- Zoro #
- G4681765
- UPC #
- 781810556054
- Country of Origin
- United States
Dimensions
- For Wire Size
- 250 kcmil, 300 kcmil, 4/0 AWG
- For Stud Size
- 1/2 in
- Barrel Size
- Short
- Tongue Width
- 1.20 in
- Length
- 2.82"
- Barrel Length
- Short
- Width
- 1.2"
- Cable Size
- 250 kcmil
- Length (Straight Wireway)
- 2.82 in
- Conductor - Copper Flex H Size
- 250 kcmil
- Dimension - Outside Diameter inch
- 0.81 in
- Dimension - Z inch
- 0.55 in
- Dimension - N inch
- 0.53 in
- Conductor - Copper DLO Size
- 4/0 (550/#24) DLO
- Dimension - Pad Width inch
- 1.20 in
- Conductor - Copper Flex M Size
- 4/0 AWG
- Conductor Size
- 300 KCMIL
- Conductor - Copper Str Size
- 300 kcmil
- Dimension - Bolt Size inch
- 0.5
- Conductor - Copper Flex K Size
- 4/0 AWG
- Conductor - Copper Flex I Size
- 4/0 AWG
- Dimension - Strip Length inch
- 39448
- Dimension - Stud Size fraction
- 1 to 2
- Dimension - L Length Overall mm
- 72 mm
- Dimension - Bolt Size fraction
- 1 to 2
- Dimension - Hole Size inch
- 0.53 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - B Length inch
- 1.04 in
- Conductor - Copper Str Size Range
- 300 kcmil
- Dimension - Length Overall inch
- 2.82 in
- Conductor - Copper Flex M Size Range
- 4/0 AWG
- Conductor - Copper Str Navy Size
- 300 (91) Navy
- Dimension - Hole Size mm
- 13 mm
- Dimension - Hole Size fraction
- 1 to 2
- Conductor - Copper Flex G Size
- 250 kcmil
- For Stranded Copper Wire Size - Maximum
- 300 kcmil
Description
Compression Lug, Barrel Size Standard, Color Code White, Die Code 1,024, For Stud Size 1/2 in, For Stranded Copper Wire Size - Maximum 300 kcmil, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Standards CSA Certified, UL 486A-486B, UL Listed, Connector Type Belled Straight Barrel, Contact Finish Tin, For Wire Size 250 kcmil, 300 kcmil, 4/0 AWG, For Wire Type Stranded
