  11. One-Hole Compression Lug, 250 kcmil Max, 5/8 in Stud, Long Barrel, Copper, None

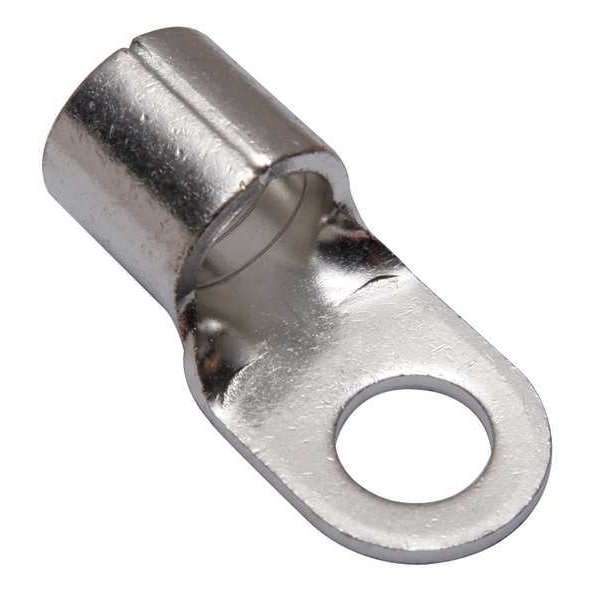

Burndy One-Hole Compression Lug, 250 kcmil Max, 5/8 in Stud, Long Barrel, Copper, None YAD30M16E58 - main

One-Hole Compression Lug, 250 kcmil Max, 5/8 in Stud, Long Barrel, Copper, None

  • Mfr # YAD30M16E58

  • Zoro # G6153761

product price: $23.19
/ea

Key Features

For Wire Size
250 kcmil
For Conductor Material
Copper
For Stud Size
5/8 in
Material
Copper
Barrel Size
Long
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD30M16E58
Zoro #
G6153761
UPC #
781810668450
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
250 kcmil
For Stud Size
5/8 in
Barrel Size
Long
Tongue Width
1.18 in
Overall Length
2.56 in
Cable Size
250 Kcmil to 300 kcmil
Barrel Length
0.95 in
Length
2.56"
Width
1.18"
Tongue Width - Wire Connector
1.18 in
Maximum Wire Size
300 kcmil
Minimum Wire Size
250 kcmil
Tongue Thickness
0.13 in
Barrel Outside Diameter
1 in
Hole Diameter
0.67 in
Tongue Length
1.61 in
Strip Length
1 1/8 in
Dimension - Outside Diameter inch
1.00 in
Dimension - Length Overall inch
2.56 in
Conductor - Copper Str Size
250 kcmil;300 kcmil
Dimension - Pad Width inch
1.18 in
Dimension - L Length Overall mm
65 mm
Dimension - Strip Length inch
39448
Dimension - B Length inch
0.95 in
Dimension - Stud Size inch
45054
Dimension - Hole Size inch
0.67 in
Conductor - Copper Str Size Range
250-300 kcmil
Dimension - Bolt Size fraction
2023-05-08

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Inspection Hole
No
Color Code
None
Standards
UL 467
Hole Center to End
1.970"
Tongue Style
Ring
Max. Voltage
600 V
Wire Range
300 kcmil
Connection Material
Tin Plater Copper
Insulation Color
Bare
Seam
Brazed
Insulation Type
Non-Insulated
Connector Type
YAD
Max. Temp.
302 Degrees F
Peep Hole
No
Plate Material
Tin
Maximum Voltage
600 V
Hole Spacing
1.02 in
RoHS Compliant
Yes
Seam Style
Brazed
Insulation Material
None
Compatible with Product Type
Code, Flex Cable
Compatible with Series
PAT46, PAT4PC834, PAT750, PAT81KFT, Y46, Y4PC834, Y750, Y81KFT
Minimum Operating Temperature
302 Degrees F
Termination Style
Crimp
Insulation Coverage
None
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Terminal Shape
Ring Tongue
Barrel Style
Brazed
Contact Material
Copper
Maximum Operating Temperature
302 Degrees F
Contact Finish
Tin
Feature - Barrel Type
Long
Item Type
3B
Type
Ring Tongue
Industry Standard(s)
UL467
Physical Attribute - Tongue Type
Ring
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Trade Name
HYLUGâ„¢
Plating Type
Tin
Plated
Y
Voltage - Maximum
600 V
Conductor Type
CU C Str-SizeCU C Flex-Size

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 250 kcmil, Maximum Wire Size 300 kcmil, Termination Style Crimp, Tongue Width 1.18 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.95 in, Barrel Outside Diameter 1 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221
