  11. One-Hole Compression Lug, 250 kcmil to 300 kcmil Max, 3/4 in Stud, Long Barrel, Copper, None

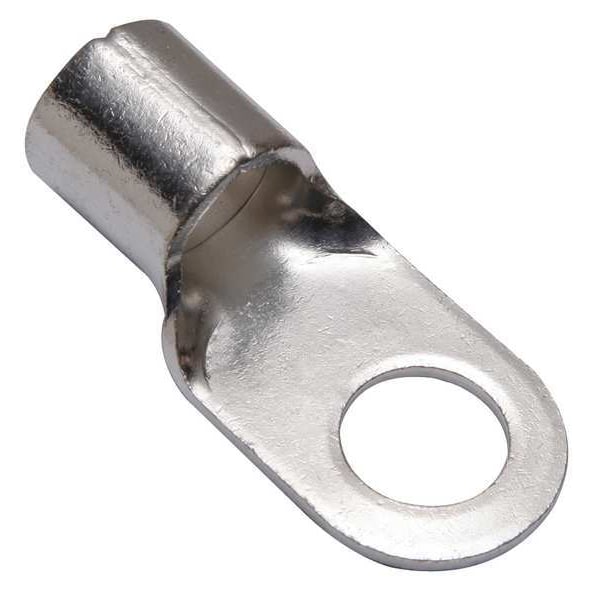

Burndy One-Hole Compression Lug, 250 kcmil to 300 kcmil Max, 3/4 in Stud, Long Barrel, Copper, None YAD30M20E34 - main

One-Hole Compression Lug, 250 kcmil to 300 kcmil Max, 3/4 in Stud, Long Barrel, Copper, None

  • Mfr # YAD30M20E34

  • Zoro # G6195804

product price: $26.69
/ea

Key Features

For Wire Size
250 kcmil to 300 kcmil
For Conductor Material
Copper
For Stud Size
3/4 in
Material
Copper
Barrel Size
Long
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD30M20E34
Zoro #
G6195804
UPC #
781810668467
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
250 kcmil to 300 kcmil
For Stud Size
3/4 in
Barrel Size
Long
Tongue Width
1.18 in
Cable Size
250 Kcmil to 300 kcmil
Overall Length
2.56 in
Length
2.56"
Width
1.18"
Tongue Width - Wire Connector
1.18 in
Barrel Length
0.95 in
Strip Length
1 1/8 in
Hole Diameter
0.8 in
Tongue Thickness
0.13 in
Maximum Wire Size
300 kcmil
Tongue Length
1.61 in
Barrel Outside Diameter
1 in
Minimum Wire Size
250 kcmil
Dimension - Length Overall inch
2.56 in
Dimension - L Length Overall mm
65 mm
Conductor - Copper Str Size Range
250-300 kcmil
Dimension - Outside Diameter inch
1.00 in
Dimension - Hole Size inch
0.80 in
Dimension - Strip Length inch
39448
Dimension - Pad Width inch
1.18 in
Dimension - Stud Size inch
44989
Dimension - Bolt Size fraction
2023-03-04
Dimension - B Length inch
0.95 in
Conductor - Copper Str Size
250 kcmil;300 kcmil

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Inspection Hole
No
Color Code
None
Standards
UL 467
Plate Material
Tin
Seam
Brazed
Insulation Color
Bare
Peep Hole
No
Max. Temp.
302 Degrees F
Insulation Type
Non-Insulated
Connector Type
YAD
Hole Center to End
1.970"
Connection Material
Tin Plater Copper
Tongue Style
Ring
Max. Voltage
600 V
Wire Range
300 kcmil
Insulation Coverage
None
Barrel Style
Brazed
Contact Material
Copper
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Termination Style
Crimp
Minimum Operating Temperature
302 Degrees F
Maximum Voltage
600 V
Contact Finish
Tin
Seam Style
Brazed
Compatible with Product Type
Code, Flex Cable
RoHS Compliant
Yes
Terminal Shape
Ring Tongue
Hole Spacing
1.02 in
Insulation Material
None
Compatible with Series
PAT46, PAT4PC834, PAT750, PAT81KFT, Y46, Y4PC834, Y750, Y81KFT
Maximum Operating Temperature
302 Degrees F
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Plating Type
Tin
Plated
Y
Physical Attribute - Tongue Type
Ring
Conductor Type
CU C Str-SizeCU C Flex-Size
Type
Ring Tongue
Trade Name
HYLUGâ„¢
Item Type
3B
Feature - Barrel Type
Long
Industry Standard(s)
UL467
Voltage - Maximum
600 V
Number of Holes
1

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 250 kcmil, Maximum Wire Size 300 kcmil, Termination Style Crimp, Tongue Width 1.18 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.95 in, Barrel Outside Diameter 1 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221
