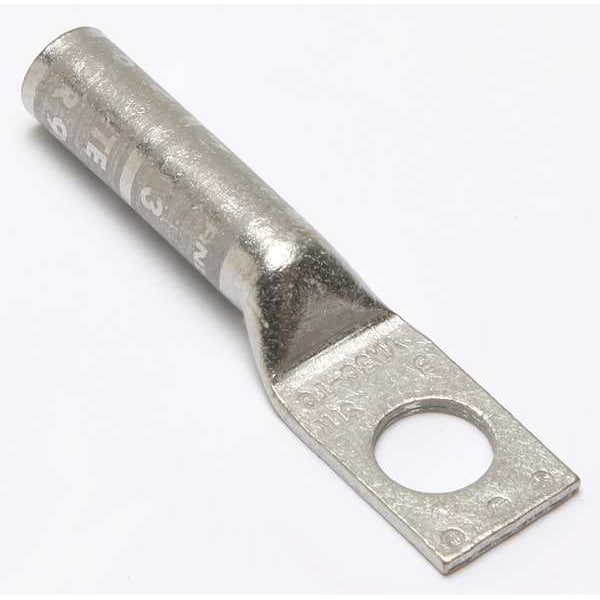

One-Hole Compression Lug, 3 AWG Max, 3/8 in Stud, Long Barrel, Copper, White
Mfr # YA3CTC38
Zoro # G4651963
product price:Â
$
11.39
/ea
Key Features
For Wire Size
3 AWG
For Conductor Material
Copper
For Stud Size
3/8 in
Material
Copper
Barrel Size
Long
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- YA3CTC38
- Zoro #
- G4651963
- UPC #
- 781810555859
- Country of Origin
- United States
Dimensions
- For Wire Size
- 3 AWG
- For Stud Size
- 3/8 in
- Barrel Size
- Long
- Tongue Width
- 0.58 in
- Width
- 0.58"
- Length
- 2.42"
- Cable Size
- 3 AWG, 2 SOL
- Barrel Length
- Long
- Overall Length
- 2.42 in
- Overall Width
- 0.59 in
- Length (Straight Wireway)
- 2.43 in
- For Stranded Copper Wire Size - Maximum
- 3 AWG
- Tongue Length
- 0.83 in
- For Stranded Copper Wire Size - Minimum
- 3 AWG
- Tongue Thickness
- 0.08 in
- Barrel Outside Diameter
- 0.38 in
- Strip Length
- 1 5/16 in
- Hole Size
- 0.4 in
- Dimension - Z inch
- 0.42 in
- Dimension - Outside Diameter inch
- 0.38 in
- Dimension - Bolt Size inch
- 0.38
- Dimension - D inch
- 0.83 in
- Dimension - B Length inch
- 1.25 in
- Dimension - Pad Width inch
- 0.58 in
- Conductor - Copper Solid Size
- 2 AWG
- Conductor - Copper Str Size Range
- 3 AWG
- Dimension - Hole Size mm
- 10 mm
- Dimension - Hole Size inch
- 0.40 in
- Dimension - N inch
- 0.41 in
- Dimension - Stud Size fraction
- 2023-03-08
- Conductor Size
- 3 AWG
- Conductor - Copper Str Navy Size
- 50 (19) Navy
- Dimension - Length Overall inch
- 2.42 in
- Dimension - L Length Overall mm
- 61 mm
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - Stud Size inch
- 44993
- Dimension - Bolt Size fraction
- 2023-03-08
- Conductor - Copper Str Navy Size Range
- 50 (19) Navy
- Dimension - Hole Size fraction
- 2023-03-08
- Conductor - Copper Str Size
- 3 AWG
- Dimension - Strip Length inch
- 42374
- Conductor - Copper Solid Size Range
- 2 AWG
- Wire Rope Length
- 2.42 in
Description
Compression Lug, Barrel Size Long, Color Code White, Die Code 9, Tongue Angle Straight, Tongue Width 0.58 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 3 AWG, For Stranded Copper Wire Size - Maximum 3 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
