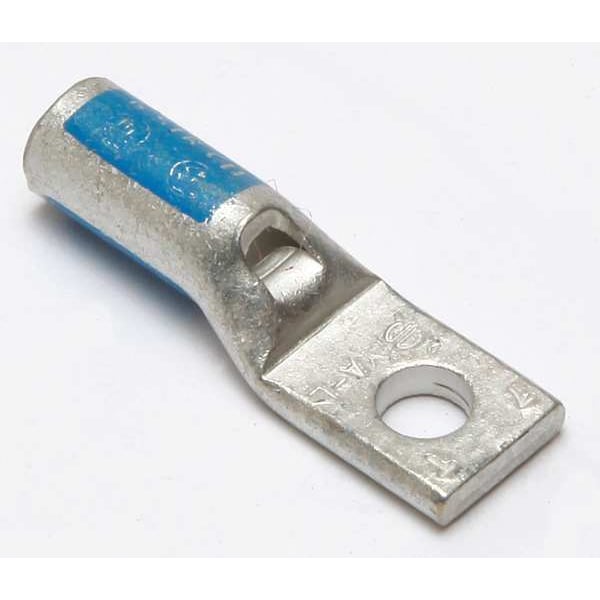

One-Hole Compression Lug, 6 AWG Max, #6 Stud, Standard Barrel, Copper, Blue
Mfr # YA6CLNT6
Zoro # G4666654
product price:Â $8.99
/eaKey Features
For Wire Size
6 AWG
For Conductor Material
Copper
For Stud Size
#6
Material
Copper
Barrel Size
Standard
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- YA6CLNT6
- Zoro #
- G4666654
- UPC #
- 781810559802
- Country of Origin
- United States
Dimensions
- For Wire Size
- 6 AWG
- For Stud Size
- #6
- Barrel Size
- Standard
- Tongue Width
- 0.29 in
- Length
- 1.17"
- Cable Size
- 6 AWG
- Barrel Length
- Short
- Width
- 0.29"
- Overall Width
- 0.3 in
- Overall Length
- 1.17 in
- Length (Straight Wireway)
- 1.17 in
- Hole Size
- 0.17 in
- For Stranded Copper Wire Size - Maximum
- 6 AWG
- Tongue Thickness
- 0.09 in
- Strip Length
- 7/8 in
- Barrel Outside Diameter
- 0.29 in
- For Stranded Copper Wire Size - Minimum
- 6 AWG
- Tongue Length
- 0.41 in
- Conductor - Copper Solid Size Range
- 6 AWG
- Dimension - Outside Diameter inch
- 0.29 in
- Dimension - Pad Width inch
- 0.29 in
- Dimension - Bolt Hole Size inch
- 0.17 in
- Conductor Size
- 6 AWG
- Dimension - Hole Size mm
- 4 mm
- Dimension - Strip Length inch
- 45115
- Dimension - Stud Size fraction
- #6
- Dimension - N inch
- 0.19 in
- Dimension - D inch
- 0.41 in
- Conductor - Copper Str Size
- 6 AWG
- Dimension - B Length fraction
- 9/16 in
- Dimension - B Length inch
- 0.54 in
- Dimension - L Length Overall mm
- 30 mm
- Conductor - Copper Solid Size
- 6 AWG
- Dimension - Bolt Size fraction
- #6
- Dimension - Stud Size inch
- #6
- Dimension - Hole Size fraction
- #6
- Dimension - Hole Size inch
- 0.16
- Dimension - Length Overall inch
- 1.17 in
- Dimension - Z inch
- 0.22 in
- Conductor - Copper Str Size Range
- 6 AWG
Description
One-Hole Lug Compression Connector, Barrel Size Standard, Color Code Blue, Die Code 374, 7, Tongue Angle Straight, Tongue Width 0.29 in, For Conductor Material Copper, For Stud Size #6, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
