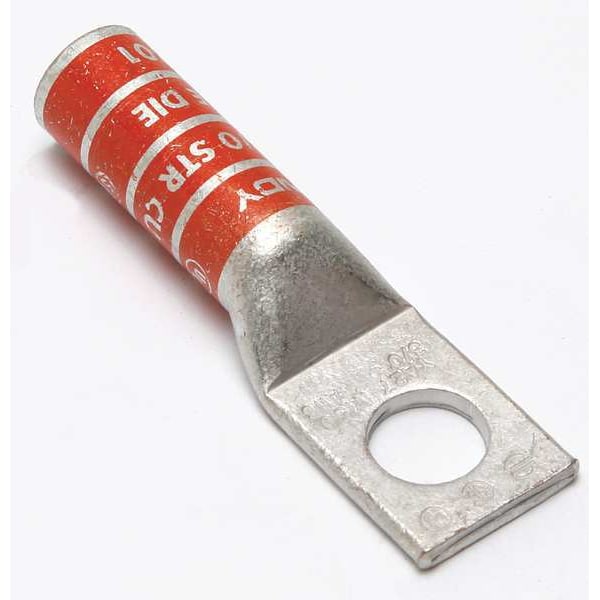

One-Hole Compression Lug, 3/0 AWG Max, 1/2 in Stud, Long Barrel, Copper, Orange
Mfr # YA27
Zoro # G4699807
CAD Available
product price: $13.15
/eaKey Features
CAD Drawing
Cable Size
3/0 AWG
Connector Type
Long Barrel
Width
0.91"
Material
Copper
Length
3.06"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YA27
Zoro #
G4699807
UPC #
781810555576
Country of Origin
United States
Dimensions
Cable Size
3/0 AWG
Width
0.91"
Length
3.06"
Barrel Length
Long
Overall Width
0.9 in
Overall Length
3.06 in
Length (Straight Wireway)
3.06 in
Tongue Thickness
0.13 in
For Stud Size
1/2 in
Tongue Width
0.91 in
Strip Length
1 9/16 in
Barrel Size
Long
For Stranded Copper Wire Size - Minimum
3/0 AWG
For Wire Size
3/0 AWG
For Stranded Copper Wire Size - Maximum
3/0 AWG
Barrel Outside Diameter
0.62 in
Hole Size
0.53 in
Tongue Length
1.08 in
Dimension - Thread Size
1 to 2
Dimension - Z inch
0.55 in
Dimension - Strip Length inch
42378
Dimension - Outside Diameter inch
0.62 in
Conductor - Copper Str Navy Size
150 (61) Navy
Conductor - Copper Str Size
3/0 AWG
Dimension - N inch
0.53 in
Dimension - Hole Size inch
0.53 in
Dimension - Length Overall inch
3.06 in
Dimension - Hole Size mm
13 mm
Conductor - Copper Str Size Range
3/0 AWG
Dimension - Stud Size inch
1 to 2
Dimension - B Length fraction
1-1/2 in
Dimension - Bolt Hole Size inch
0.52 in
Dimension - Pad Width inch
0.91 in
Dimension - Bolt Size fraction
1 to 2
Dimension - B Length inch
1.50 in
Thickness - Pad
0.13 in
Dimension - L Length Overall mm
78 mm
Description
Compression Lug, Barrel Size Long, Color Code Orange, Die Code 14, Tongue Angle Straight, Tongue Width 0.91 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 3/0 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
