  11. Ballast Dsconnct, Orng, 3 Ports, 1.50", PK20
Shop All Wire Disconnects
Ideal

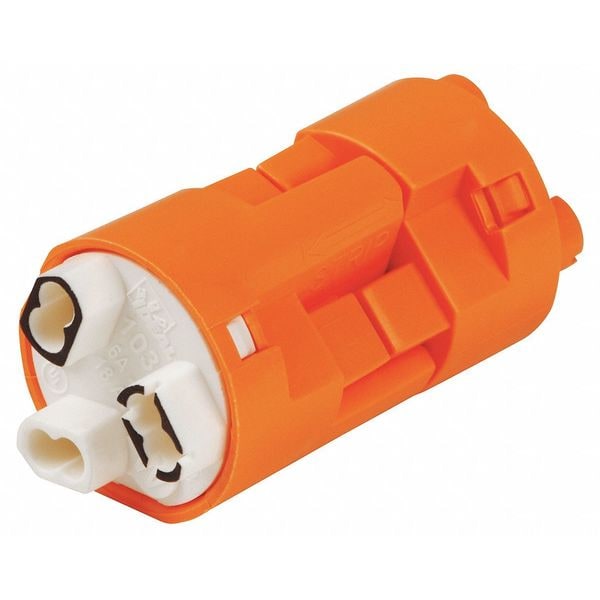

Ballast Dsconnct, Orng, 3 Ports, 1.50", PK20

original price: $51.15
5% off
new price: $48.29
/pk 20, $2.41/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Wire Size 18 to 12 AWG
  • Color Orange
  • Insulation Color Orange
  • Connection Type Push-In
  • Insulation Type Polycarbonate
See all product information

Product Information

Dimensions

Wire Size 18 to 12 AWG
Overall Length 1.5 in
For Ballast Side Wire Size 18 AWG
For Ballast Side Solid Wire Size - Maximum 18 AWG
For Line Side Wire Size 12 AWG, 14 AWG, 16 AWG, 18 AWG
For Ballast Side Solid Wire Size - Minimum 18 AWG
For Line Side Solid Wire Size - Minimum 18 AWG
For Line Side Solid Wire Size - Maximum 12 AWG
Cable Tie Length 24.5"

Details

Item Ballast Disconnect
Color Orange
Insulation Color Orange
Connection Type Push-In
Insulation Type Polycarbonate
Number of Ports 3
Max. Temp. 221 Degrees F
Max. Voltage 600 V
Male/Female 3 Male/3 Female
Connection Material Tin-Plated Brass
Application New Installation, OEM, Retrofit
Standards CEC Part I Rule 30-308(4), CSA, NEC 410.130(G), NEC 410.73(G), UL
Maximum Current 6 A
Insulation Material Polycarbonate
Compatible with Series 103
RoHS Compliant No
Gender 3 Male/3 Female
Number of Poles 3-Pole Disconnects
Number of Ports - Line Side 3
Special Features Fits Through 1/2 in Knockout
UL 94 Flammability Rating V-0
Maximum Voltage 600 V
Number of Ports - Ballast Side 3
Maximum Operating Temperature 221 Degrees F
Contact Type Plug to Socket, Socket to Plug
For Conductor Material Copper
Number of Pieces 20
Contact Material Tin-Plated Brass
Wire Type Combo

Description

Ballast Disconnect, Color Orange, Connection Type Push-In, Contact Type Plug to Socket, Socket to Plug, For Ballast Side Solid Wire Size - Minimum 18 AWG, For Ballast Side Solid Wire Size - Maximum 18 AWG, Number of Ports - Ballast Side 3, For Line Side Solid Wire Size - Minimum 18 AWG, For Line Side Solid Wire Size - Maximum 12 AWG, Number of Ports - Line Side 3, For Conductor Material Copper, Gender 3 Male/3 Female, Insulation Material Polycarbonate, Maximum Current 6 A
