  11. One-Hole Compression Lug, 3/0 AWG Max, 3/4 in Stud, Long Barrel, Copper, None

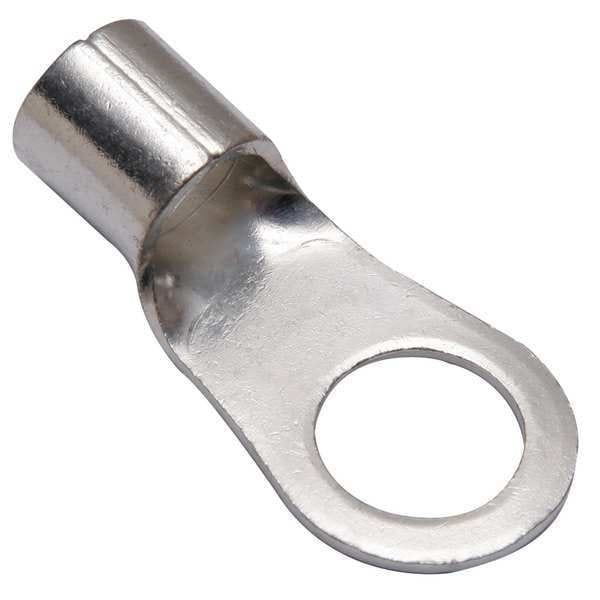

Burndy One-Hole Compression Lug, 3/0 AWG Max, 3/4 in Stud, Long Barrel, Copper, None YAD27M20E34 - main

One-Hole Compression Lug, 3/0 AWG Max, 3/4 in Stud, Long Barrel, Copper, None

  • Mfr # YAD27M20E34

  • Zoro # G6097506

product price: $18.89
/ea

Key Features

For Wire Size
3/0 AWG
For Conductor Material
Copper
For Stud Size
3/4 in
Material
Copper
Barrel Size
Long
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD27M20E34
Zoro #
G6097506
UPC #
781810668290
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
3/0 AWG
For Stud Size
3/4 in
Barrel Size
Long
Tongue Width
1.14 in
Overall Length
2.37 in
Cable Size
3/0 AWG
Barrel Length
0.79 in
Length
2.28"
Width
1.1"
Tongue Width - Wire Connector
1.1 in
Strip Length
7/8 in
Hole Diameter
0.8 in
Maximum Wire Size
3/0 AWG
Tongue Length
1.58 in
Tongue Thickness
0.1 in
Minimum Wire Size
3/0 AWG
Barrel Outside Diameter
0.79 in
Dimension - Length Overall inch
2.37 in
Dimension - B Length inch
0.79 in
Conductor - Copper Str Size
3/0 AWG
Dimension - Hole Size inch
0.80 in
Conductor Size
3/0 AWG
Dimension - Pad Width inch
1.14 in
Dimension - L Length Overall mm
58 mm
Dimension - Stud Size inch
44989
Dimension - Strip Length inch
45115
Dimension - Outside Diameter inch
0.79 in
Dimension - Bolt Size fraction
2023-03-04

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Inspection Hole
No
Die Code
1023
Color Code
None
Standards
UL 467
Hole Center to End
1.730"
Connector Type
YAD
Insulation Color
Bare
Seam
Brazed
Insulation Type
Non-Insulated
Tongue Style
Ring
Max. Temp.
302 Degrees F
Wire Range
3/0 AWG
Max. Voltage
600 V
Connection Material
Tin Plater Copper
Peep Hole
No
Plate Material
Tin
Seam Style
Brazed
Minimum Operating Temperature
302 Degrees F
Terminal Shape
Ring Tongue
RoHS Compliant
Yes
Hole Spacing
0.86 in
Insulation Coverage
None
Maximum Voltage
600 V
Insulation Material
None
Contact Material
Copper
Termination Style
Crimp
Compatible with Product Type
Code, Flex Cable
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Barrel Style
Brazed
Maximum Operating Temperature
302 Degrees F
Contact Finish
Tin
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Voltage - Maximum
600 V
Plating Type
Tin - Electro Plated
Conductor Type
CU C Str-SizeCU C Flex-Size
Industry Standard(s)
UL467
Plated
Y
Trade Name
HYLUGâ„¢
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Feature - Barrel Type
Long
Physical Attribute - Tongue Type
Ring
Type
Ring Tongue
Item Type
3B

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 3/0 AWG, Maximum Wire Size 3/0 AWG, Termination Style Crimp, Tongue Width 1.14 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.79 in, Barrel Outside Diameter 0.79 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221, Compatible with Product Type Code, Flex Cable
