Shop BURNDY

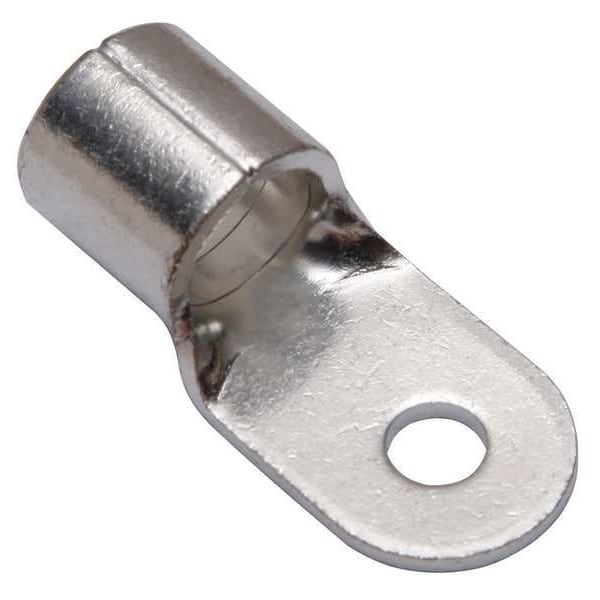

One-Hole Compression Lug, 3/0 AWG Max, 5/16 in Stud, Long Barrel, Copper, None

  • Mfr # YAD27M8E516

  • Zoro # G6137704

product price:  $14.69
/ea

Key Features

For Wire Size
3/0 AWG
For Conductor Material
Copper
For Stud Size
5/16 in
Material
Copper
Barrel Size
Long
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
YAD27M8E516
Zoro #
G6137704
UPC #
781810668306
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
3/0 AWG
For Stud Size
5/16 in
Barrel Size
Long
Tongue Width
0.99 in
Barrel Length
0.79 in
Length
2.13"
Overall Length
2.22 in
Cable Size
3/0 AWG
Width
0.95"
Tongue Width - Wire Connector
0.95 in
Barrel Outside Diameter
0.79 in
Tongue Length
1.43 in
Minimum Wire Size
3/0 AWG
Strip Length
7/8 in
Tongue Thickness
0.12 in
Maximum Wire Size
3/0 AWG
Hole Diameter
0.33 in
Conductor Size
3/0 AWG
Dimension - Outside Diameter inch
0.79 in
Dimension - L Length Overall mm
54 mm
Dimension - Strip Length inch
45115
Conductor - Copper Str Size
3/0 AWG
Dimension - Bolt Size fraction
2023-05-16
Dimension - Hole Size inch
0.33 in
Dimension - B Length inch
0.79 in
Dimension - Stud Size inch
45062
Dimension - Length Overall inch
2.22 in
Dimension - Pad Width inch
0.99 in
Stud Size
5/16 in
Wire Rope Length
2.22 in

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Inspection Hole
No
Die Code
1023
Color Code
None
Standards
UL467
Wire Range
3/0 AWG
Connector Type
YAD
Insulation Color
Bare
Max. Temp.
302 Degrees F
Connection Material
Tin Plater Copper
Hole Center to End
1.650"
Insulation Type
Non-Insulated
Max. Voltage
600 V
Seam
Brazed
Plate Material
Tin
Peep Hole
No
Tongue Style
Ring
Maximum Voltage
600 V
Barrel Style
Brazed
Minimum Operating Temperature
302 Degrees F
Insulation Coverage
None
Terminal Shape
Ring Tongue
RoHS Compliant
Yes
Insulation Material
None
Compatible with Product Type
Code, Flex Cable
Contact Material
Copper
Termination Style
Crimp
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Hole Spacing
0.86 in
Contact Finish
Tin
Seam Style
Brazed
Maximum Operating Temperature
302 Degrees F
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Type
Ring Tongue
Feature - Barrel Type
Long
Plated
Y
Physical Attribute - Tongue Type
Ring
Voltage - Maximum
600 V
Item Type
3B
Plating Type
Tin
Industry Standard(s)
UL467
Conductor Type
CU C Str-SizeCU C Flex-Size
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Trade Name
HYLUGâ„¢
Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 3/0 AWG, Maximum Wire Size 3/0 AWG, Termination Style Crimp, Tongue Width 0.99 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.79 in, Barrel Outside Diameter 0.79 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221
