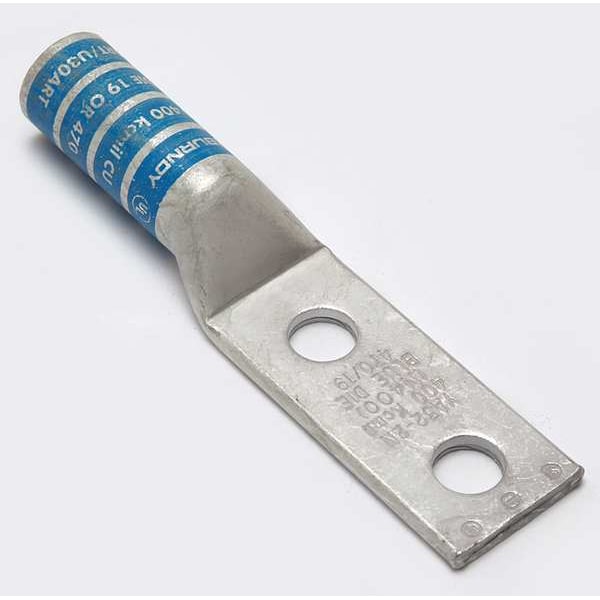

Two-Hole Compression Lug, 400 kcmil Max, 1/2 in Stud, Long Barrel, Copper, Blue
Mfr # YA322N
Zoro # G4687417
product price:Â $33.29
/eaKey Features
For Wire Size
400 kcmil
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Long
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- YA322N
- Zoro #
- G4687417
- UPC #
- 781810555583
- Country of Origin
- United States
Dimensions
- For Wire Size
- 400 kcmil
- For Stud Size
- 1/2 in
- Barrel Size
- Long
- Tongue Width
- 1.40 in
- Cable Size
- 400 kcmil
- Barrel Length
- Long
- Width
- 1.4"
- Length
- 5.85"
- Overall Length
- 5.85 in
- Overall Width
- 1.4 in
- Length (Straight Wireway)
- 5.85 in
- Barrel Outside Diameter
- 0.95 in
- Tongue Thickness
- 0.21 in
- For Stranded Copper Wire Size - Minimum
- 400 kcmil
- For Stranded Copper Wire Size - Maximum
- 400 kcmil
- Strip Length
- 2 3/16 in
- Tongue Length
- 1.27 in
- Hole Size
- 0.56 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Strip Length inch
- 42403
- Dimension - Stud Size inch
- 1 to 2
- Conductor - Copper Str Size Range
- 400 kcmil
- Dimension - Outside Diameter inch
- 0.95 in
- Dimension - B Length fraction
- 2-1/8 in
- Conductor Size
- 400 KCMIL
- Dimension - Hole Size mm
- 14 mm
- Dimension - N inch
- 0.63 in
- Dimension - Bolt Size inch
- 0.5
- Conductor - Copper Str Size
- 400 kcmil
- Dimension - Pad Width inch
- 1.40 in
- Dimension - Z inch
- 0.64 in
- Dimension - L Length Overall mm
- 149 mm
- Conductor - Copper Str Navy Size
- 400 (127) Navy
- Dimension - B Length inch
- 2.12 in
- Dimension - Hole Size fraction
- 1 to 2
- Dimension - Bolt Size fraction
- 1 to 2
- Dimension - Length Overall inch
- 5.85 in
- Dimension - Bolt Hole Size inch
- 0.56 in
- Dimension - Stud Size fraction
- 1 to 2
Description
Compression Lug, Barrel Size Long, Color Code Blue, Die Code 19, Tongue Angle Straight, Tongue Width 1.4 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 400 kcmil, For Stranded Copper Wire Size - Maximum 400 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
