  11. One-Hole Compression Lug, 300 kcmil Max, 5/8 in Stud, Long Barrel, Copper, None

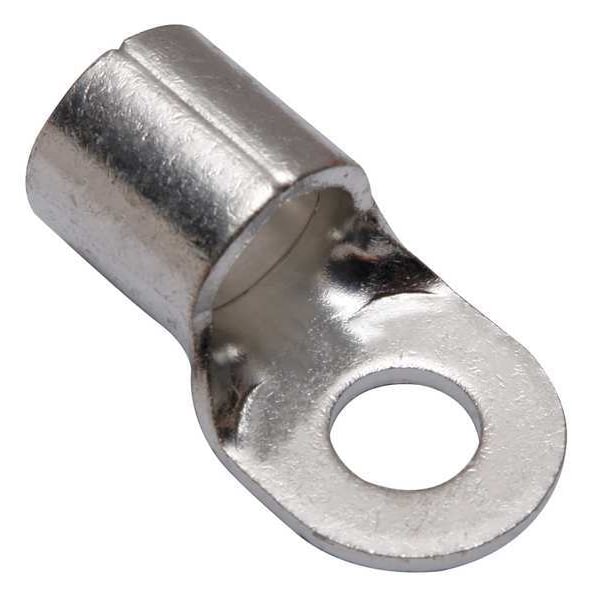

Burndy One-Hole Compression Lug, 300 kcmil Max, 5/8 in Stud, Long Barrel, Copper, None YAD31M16E58 - main

One-Hole Compression Lug, 300 kcmil Max, 5/8 in Stud, Long Barrel, Copper, None

  • Mfr # YAD31M16E58

  • Zoro # G6208867

product price: $30.87
/ea

Key Features

For Wire Size
300 kcmil
For Conductor Material
Copper
For Stud Size
5/8 in
Material
Copper
Barrel Size
Long
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD31M16E58
Zoro #
G6208867
UPC #
781810668498
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
300 kcmil
For Stud Size
5/8 in
Barrel Size
Long
Tongue Width
1.42 in
Overall Length
2.68 in
Length
2.68"
Barrel Length
1.1 in
Width
1.42"
Cable Size
250 Kcmil to 300 kcmil
Tongue Width - Wire Connector
1.42 in
Tongue Length
1.58 in
Hole Diameter
0.67 in
Minimum Wire Size
300 kcmil
Barrel Outside Diameter
1.12 in
Maximum Wire Size
350 kcmil
Strip Length
1 1/4 in
Tongue Thickness
0.14 in
Dimension - Strip Length inch
37987
Dimension - L Length Overall mm
68 mm
Conductor - Copper Str Size
300 kcmil;350 kcmil
Dimension - Stud Size inch
45054
Dimension - Bolt Size fraction
2023-05-08
Dimension - Pad Width inch
1.42 in
Conductor - Copper Str Size Range
300-350 kcmil
Dimension - Length Overall inch
2.68 in
Dimension - Outside Diameter inch
1.12 in
Dimension - Hole Size inch
0.67 in
Dimension - B Length inch
1.10 in

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Inspection Hole
No
Color Code
None
Standards
UL 467
Insulation Type
Non-Insulated
Connection Material
Tin Plater Copper
Wire Range
350 kcmil
Plate Material
Tin
Peep Hole
No
Connector Type
YAD
Seam
Brazed
Insulation Color
Bare
Max. Temp.
302 Degrees F
Hole Center to End
1.970"
Max. Voltage
600 V
Tongue Style
Ring
Terminal Shape
Ring Tongue
Compatible with Series
PAT46, PAT4PC834, PAT750, PAT81KFT, Y46, Y4PC834, Y750, Y81KFT
RoHS Compliant
Yes
Seam Style
Brazed
Maximum Operating Temperature
302 Degrees F
Insulation Material
None
Barrel Style
Brazed
Termination Style
Crimp
Contact Material
Copper
Insulation Coverage
None
Hole Spacing
0.87 in
Minimum Operating Temperature
302 Degrees F
Compatible with Product Type
Code, Flex Cable
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Contact Finish
Tin
Maximum Voltage
600 V
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Industry Standard(s)
UL467
Voltage - Maximum
600 V
Type
Ring Tongue
Plated
Y
Item Type
3B
Trade Name
HYLUGâ„¢
Conductor Type
CU C Str-SizeCU C Flex-Size
Plating Type
Tin
Physical Attribute - Tongue Type
Ring
Feature - Barrel Type
Long

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 300 kcmil, Maximum Wire Size 350 kcmil, Termination Style Crimp, Tongue Width 1.42 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 1.1 in, Barrel Outside Diameter 1.12 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221
