  11. One-Hole Compression Lug, 350 kcmil Max, 1/2 in Stud, Standard Barrel, Copper, Red

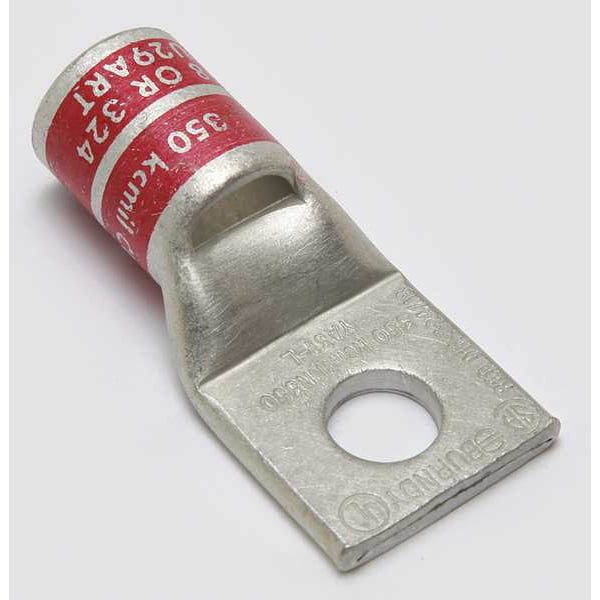

Burndy One-Hole Compression Lug, 350 kcmil Max, 1/2 in Stud, Standard Barrel, Copper, Red YA31L - main

CAD Drawings

Download CAD Files

One-Hole Compression Lug, 350 kcmil Max, 1/2 in Stud, Standard Barrel, Copper, Red

  • Mfr # YA31L

  • Zoro # G4695196

CAD Available
product price: $20.45
/ea

Key Features

CAD Drawing
For Wire Size
350 kcmil
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YA31L
Zoro #
G4695196
UPC #
781810559451
Country of Origin
United States

Dimensions

For Wire Size
350 kcmil
For Stud Size
1/2 in
Barrel Size
Standard
Tongue Width
1.29 in
Barrel Length
Short
Cable Size
350 kcmil
Length
2-3/4"
Width
1.29"
Overall Length
2.75 in
Overall Width
1.3 in
Length (Straight Wireway)
2.75 in
Barrel Outside Diameter
0.88 in
Tongue Length
1.08 in
Tongue Thickness
0.18 in
Hole Size
0.51 in
Strip Length
1 1/8 in
For Stranded Copper Wire Size - Minimum
350 kcmil
For Stranded Copper Wire Size - Maximum
350 kcmil
Conductor - Copper Str Size Range
350 kcmil
Dimension - Outside Diameter inch
0.88 in
Dimension - Bolt Size fraction
1 to 2
Dimension - Strip Length inch
39448
Conductor - Copper Str Size
350 kcmil
Dimension - L Length Overall mm
70 mm
Dimension - Z inch
0.55 in
Dimension - N inch
0.53 in
Dimension - Hole Size mm
13 mm
Dimension - Stud Size fraction
1 to 2
Dimension - D inch
1.08 in
Dimension - B Length inch
1.06 in
Dimension - Stud Size inch
1 to 2
Dimension - Bolt Size inch
0.5
Conductor - Copper Str Navy Size Range
350 (91) Navy
Dimension - B Length fraction
1-1/16 in
Conductor Size
350 KCMIL
Dimension - Pad Width inch
1.29 in
Conductor - Copper Str Navy Size
350 (91) Navy
Dimension - Length Overall inch
2.75 in
Dimension - Bolt Hole Size inch
0.52 in

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Inspection Hole
Yes
Die Code
18, 324
Color Code
Red
Standards
CSA Certified, UL 486A-486B, UL Listed, UL 467
Plate Material
Electro Tin
Peep Hole
Yes
Tongue Style
Standard
Connector Type
Standard Barrel
Hole Center to End
0.53 in
Application
For Code Conductor
Termination Style
Crimp
RoHS Compliant
Yes
Barrel Style
Chamfered, Skived
For Wire Type
Stranded
Special Features
Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements, Un-Insulated Compression Narrow Tongue Terminal, Up to 35 Kv
Maximum Voltage
35 kV AC
Maximum Operating Temperature
194 Degrees F
Contact Finish
Tin
Voltage - Maximum
35000
Type
Standard Barrel, Tin Plated
Finish Type
Tin-Plated
Physical Attribute - Tongue Angle
Straight
Conductor - Material
Copper
Conductor Type
CODE
Feature - Barrel Style
ChamferedSkived
Certification - CSA Approved
Yes
Rating - KVA
35 kV
Industry Standard(s)
UL467
Rating - Minimum Voltage
600
Voltage Rating
35 kV
Physical Attribute - Number of Holes
1
Physical Attribute - Tongue Type
Standard
Die Index
18
Trade Name
HYLUGâ„¢
Feature - Barrel Type
Standard
Plated
Y
UL Listed
Yes
Plating Type
Tin - Electro Plated
Number of Holes
1
CAD Available
Yes

Description

One-Hole Lug Compression Connector, Barrel Size Standard, Color Code Red, Die Code 18, 324, Tongue Angle Straight, Tongue Width 1.29 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 350 kcmil, For Stranded Copper Wire Size - Maximum 350 kcmil, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp
