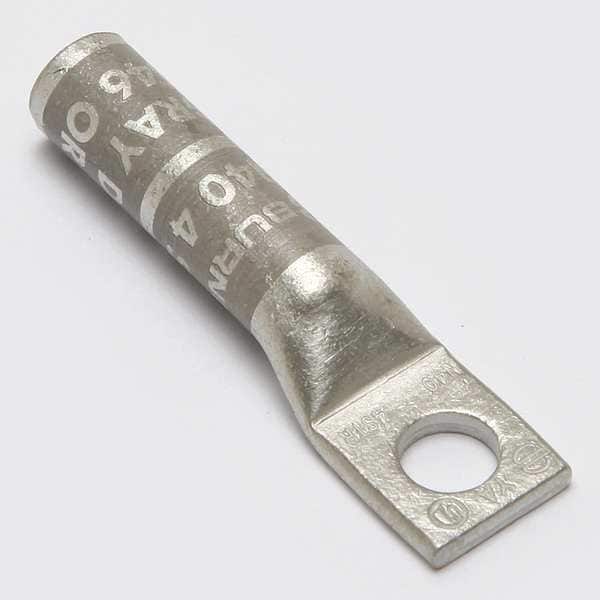

One-Hole Compression Lug, 4 AWG Max, 1/2 in Stud, Long Barrel, Copper, Gray
Mfr # YA4CN
Zoro # G4658114
product price: $10.79
/eaKey Features
Cable Size
4 AWG
Connector Type
Long Barrel
Width
0.83"
Material
Copper
Length
2.69"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YA4CN
Zoro #
G4658114
UPC #
781810555552
Country of Origin
United States
Dimensions
Cable Size
4 AWG
Width
0.83"
Length
2.69"
Barrel Length
Long
Overall Width
0.83 in
Overall Length
2.69 in
Length (Straight Wireway)
2.7 in
Hole Size
0.56 in
For Wire Size
4 AWG
Tongue Length
1.27 in
For Stranded Copper Wire Size - Minimum
4 AWG
For Stranded Copper Wire Size - Maximum
4 AWG
Barrel Size
Long
Tongue Width
0.83 in
Strip Length
1 3/16 in
For Stud Size
1/2 in
Barrel Outside Diameter
0.34 in
Tongue Thickness
0.12 in
Conductor - Copper Str Navy Size
40 (19) Navy
Dimension - D inch
1.27 in
Dimension - Hole Size inch
0.56 in
Dimension - Strip Length inch
42372
Dimension - N inch
0.63 in
Dimension - Thread Size
1 to 2
Dimension - Stud Size inch
1 to 2
Dimension - B Length inch
1.12 in
Conductor - Copper Str Size
4 AWG
Dimension - Outside Diameter inch
0.34 in
Dimension - Z inch
0.64 in
Dimension - Bolt Size fraction
1 to 2
Dimension - Bolt Hole Size inch
0.52 in
Dimension - Hole Size mm
14 mm
Conductor - Copper Str Navy Size Range
40 (19) Navy
Dimension - B Length fraction
1-1/8 in
Dimension - Length Overall inch
2.69 in
Dimension - Pad Width inch
0.83 in
Dimension - L Length Overall mm
68 mm
Conductor - Copper Str Size Range
4 AWG
Description
Compression Lug, Barrel Size Long, Color Code Gray, Die Code 346, 8, Tongue Angle Straight, Tongue Width 0.83 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
