Female Disconnect, Blue, 16-14AWG, PK25, Overall Length: 0.87 in

  • Mfr # FDI14-250Q

  • Zoro # G5187043

product price:
$
11.15
/pk of 25, $0.45/ea

Key Features

Insulation
Full
Material
Plastic
Insulation Color
Blue
Insulation Type
Nylon
Connection Type
Crimp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FDI14-250Q
Zoro #
G5187043
UPC #
00051128600016
Country of Origin
United States

Dimensions

Tab Size
0.032 in x 0.250 in
Overall Length
0.87 in
Barrel Inside Dia.
0.08 in

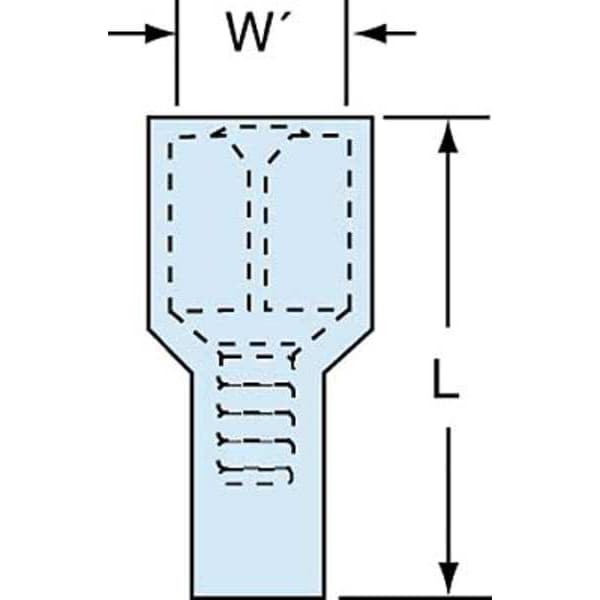

Mates with Male Tab Width (W')
0.25 Inch
Diameter (D)
0.23 Inch
Overall Length (Imperial)
0.87 in
Maximum Insulation Outer Diameter (Metric)
3.7 mm
Overall Length (Metric)
22.098 mm
Connection Width (Imperial)
0.25 in
Pad Width
0.25 in
Overall Width (Metric)
9.4 mm
Connection Width (Metric)
6.35 mm
Minimum Conductor Size
16 AWG
Maximum Insulation Outside Diameter
0.145 in
Overall Diameter (Imperial)
0.23 in
Conductor Size
16 - 14 AWG
Tab Width
0.25 in
Overall Diameter (Metric)
5.84 mm
Maximum Conductor Size
14 AWG
Overall Width (Imperial)
0.37 in
Mates with Female Width
0.25 Inch
Barrel Inside Diameter
0.08 in
Barrel Length (Imperial)
0.25 Inch
Barrel Length (Metric)
6.35 mm
Maximum Insulation Outer Diameter (Imperial)
0.145 Inch
Minimum Wire Size
16 AWG
Maximum Wire Size
14 AWG
Tab Thickness
0.032 in
Wire Rope Length
0.87 in

Details

Item
Wire Disconnect
Insulation
Full
Material
Plastic
Insulation Color
Blue
Insulation Type
Nylon
Connection Type
Crimp
Wire Range
16 to 14 AWG
Seam
Butted
Max. Voltage
600 V
Max. Temp.
221 Degrees F
Connection Material
Tin-Plated Brass
Standards
EU Compliant
Terminal Type
Socket
Max. Number of Cores
413
Minimum Wire Gauge
16 AWG
Insulation Material
Nylon
Maximum Wire Gauge
14 AWG
Terminal Style
Fully Insulated
Maximum Voltage Rating
600 to 1000 V
Maximum Recommended Voltage Rating
600 V
Fastener Orientation
Female
Disconnect Type
Female
Insulation Coverage
Full Coverage
Maximum Voltage
600 V
Contact Material
Brass
Seam Style
Butted
Termination Style
Crimp
Minimum Operating Temperature
-40 Degrees F
Disconnect Style
Quick Disconnect
Special Features
Corrosion-Resistant
Contact Finish
Tin

Description

Wire Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Quick Disconnect, Insulation Color Blue, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, Seam Style Butted, Standards EU Compliant, Barrel Inside Diameter 0.08 in, Barrel Style Not Applicable
